MSD- 86415 6-EFI Ignition Coil
Designed To Be Used With The 6EFI Ignition Box Part Number 6415

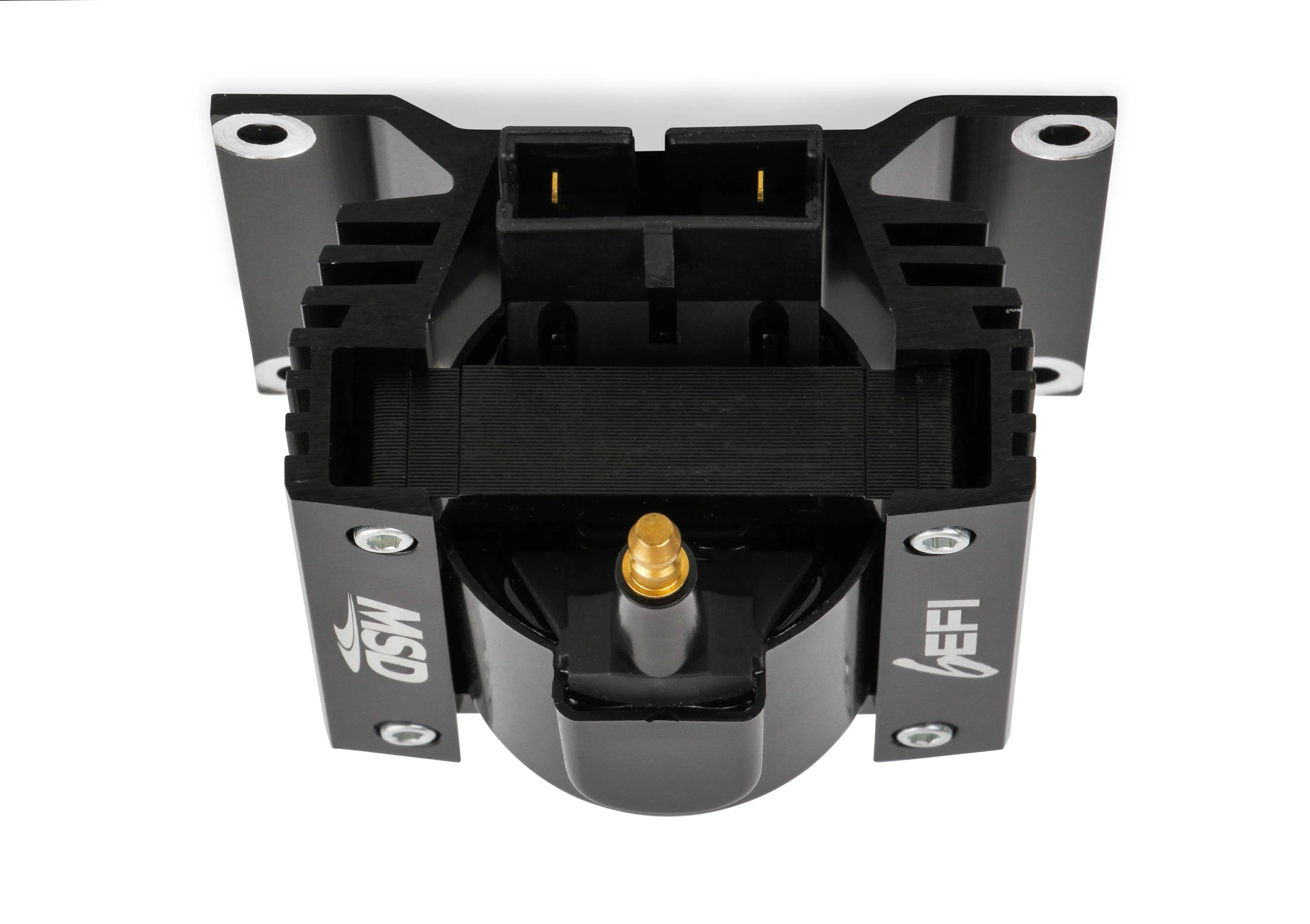

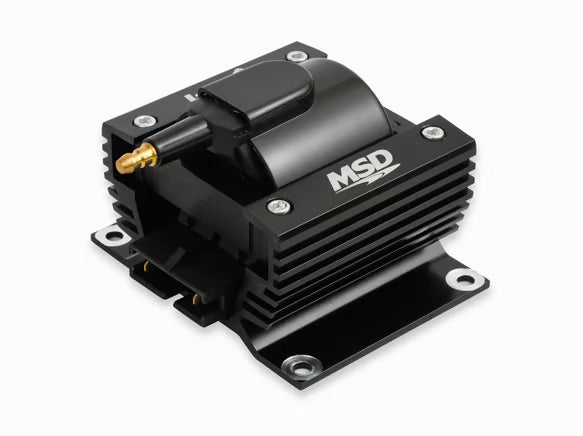

When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on its black anodized aluminum mounting bracket. It is supplied with four, self-tapping mounting screws and a plug-in harness with color-coded wires for easy installation. The 6EFI coil produces high voltage and current that translate to powerful spark improving engine starting, throttle response, and power throughout the RPM range.
Features:
- Designed to work with the MSD 6EFI Ignition part number 6415 and can also be used with other MSD 6-series ignition boxes such as a 6AL part number 6425
- An MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female, socket connection to a male high energy ignition (H.E.I.) connection if needed
- The black housing and laser-etched black anodized mounting bracket add great looks and a solid mounting point
- Produces high spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range
- Provided with a plug-in wiring harness with wire colors that match the 6EFI ignition for an easy installation

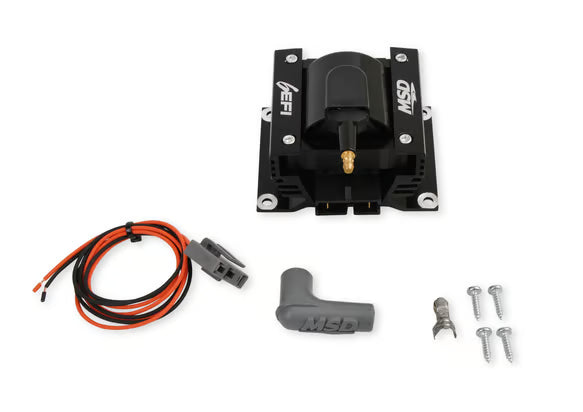

- Four, self-tapping screws are supplied for mounting the coil
| Brand | MSD |
|---|---|
| Category | Ignition |
| Color | Black |
| Emission Code | 2 |
| Inductance (mH) | 4.34 |
| Maximum Voltage | 45,000 |
| Part Type | Ignition Coil |
| Peak Current | 300 4K |
| Primary Resistance | 0.43 82 |
| Product Type | Ignition Coil |
| Secondary Resistance | 4.6K 82 |
| Spark duration | 0.3 MESC |
| Sub Category | Ignition Coil |
| Turns Ratio | 3.33 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC | 090127070383 |
| Part Number | 86415 |
