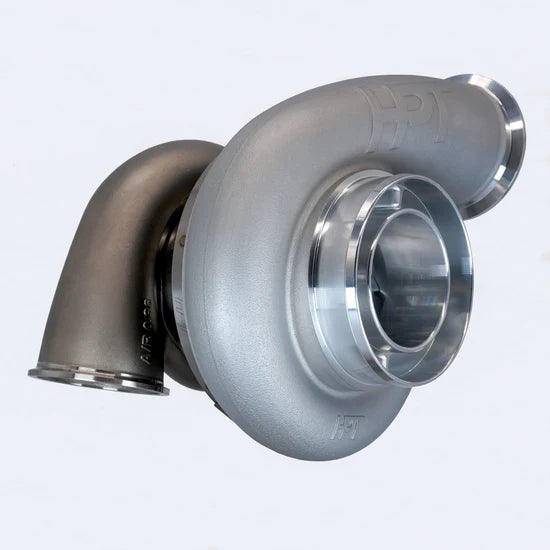

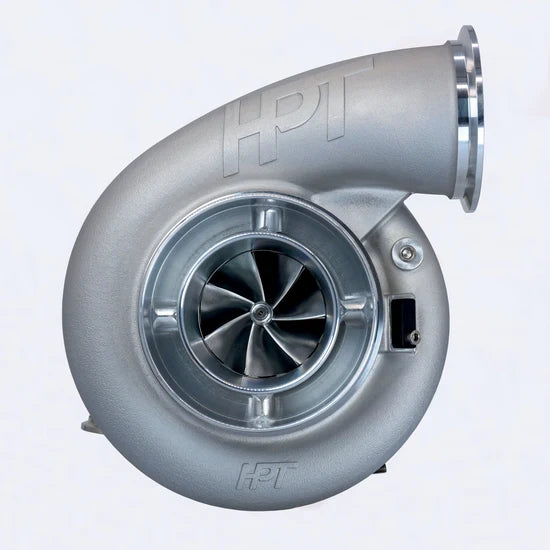

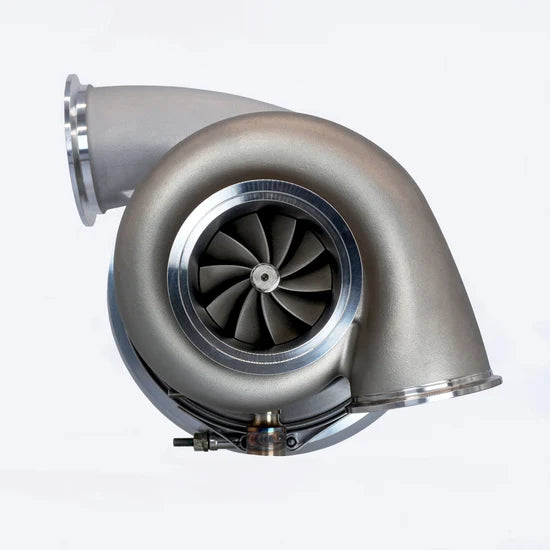

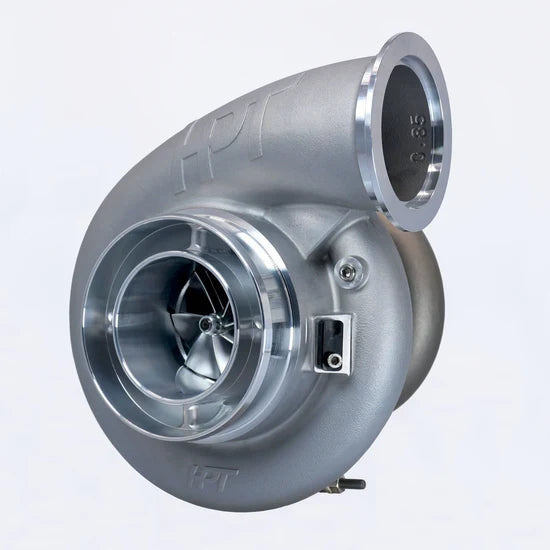

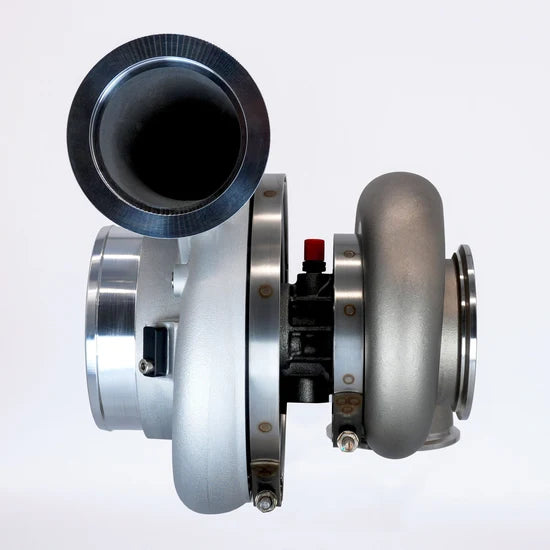

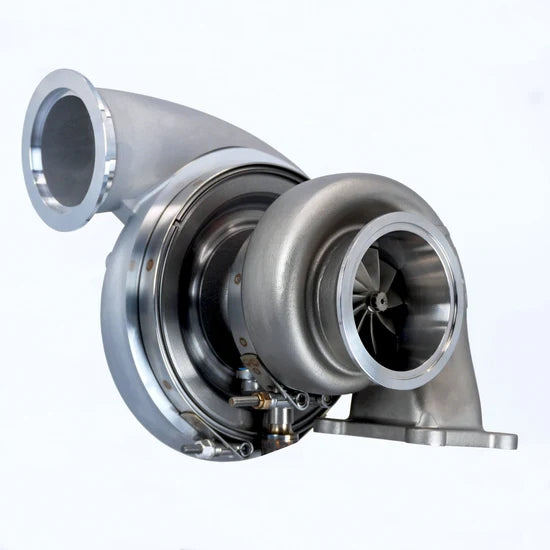

F3R 6870 HPT Turbocharger

Capable of Supporting up to 1200 Horsepower

The F3R 6870 Supercore is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag.

Alongside the bearing system, HPT Turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

Features:

• F3R Compressor Cover w/ Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing w/ Integrated Back Plate
• Ceramic Dual Ball Bearing System


Specs:

• Compressor Cover Inlet: 5"
• Compressor Cover Discharge: V-Band (Flange OD 4.212")
• Compressor Wheel Inducer: 68.49mm

• Turbine Wheel Exducer: 69.90mm

Racing Use Only, Not Legal for Road Use
