Hooker BlackHeart- BHS584 Gen III Hemi Swap Exhaust Manifolds - Low Profile
Gen III Hemi Swap Exhaust Manifolds with 2.5-Inch Outlets - Black Ceramic
Hooker Blackheart Gen III Hemi swap exhaust manifolds are one part of a fully engineered swap system that provides maximum component clearances and ideal drivetrain geometry. These manifolds are designed to fit a wide range of swap applications where clearance is limited. Fitment has been confirmed on several popular platforms, see below. These exhaust manifolds are cast from hi-silicon-moly ductile iron and feature 2.5-inch 2-bolt collectors. These manifolds provide clearance to the brake booster, steering shaft, steering box, and starter motor (both left & right-side-mounted starters) and provide clearance for several automatic & manual transmission options. Manifold fitment has been confirmed on the following Gen III Hemi swap vehicles when used with Holley engine swap components: compatibility with other vehicle combinations and swap components is likely but has not been confirmed. 1967-1972 A-Body manual steering only, requires power steering or shortened steering column tube and u-joint style coupler 1966-1972 B-Body-Manual or Power Steering, Figure 3 in photo & instruction sheet 1970-1974 E-Body-Manual or Power Steering, Figure 3 in photo & instruction sheet 1987-1996 Dodge Dakota 2wd V6/V8 1997-2004 Dodge Dakota 2wd V6/V8-Upper Control arm clearance recommended, Figure 4 in photo & instruction sheet 1972-1993 Dodge D100/D150
Features:
- Gen III Hemi swap exhaust manifolds-a compact, high-flow design with a factory look that is ideal for engine swaps with limited space
- Choose from plain as-cast, black ceramic, or silver ceramic finishes-ceramic finish reduces underhood heat and resists corrosion
- Intended for Gen III Hemi engine swap applications where durability, quiet operation, and leak-free sealing are desired
- Cast from heavy-duty hi-silicon-moly ductile iron for long-lasting durability and corrosion resistance
- 2.50-inch outlet diameter offers improved flow for maximum performance from cast iron exhaust manifolds

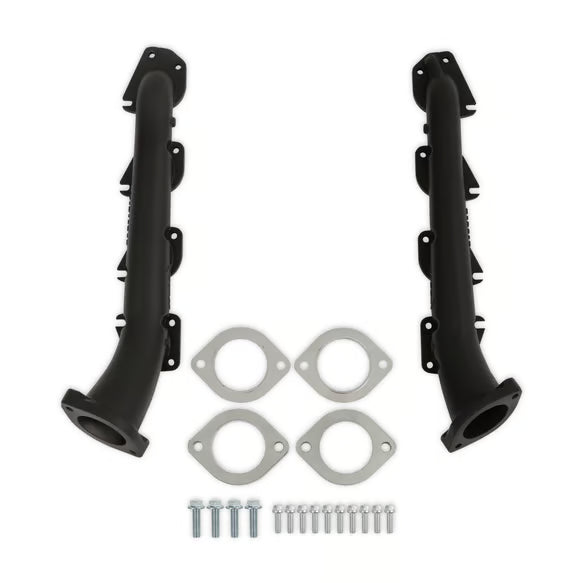

- Includes collector flanges, Multi-Layer stainless Steel (MLS) collector gaskets, and bolts – that make it easy to fabricate downpipes
- Works with left or right-hand side starters and all popular transmissions
- The slotted bottom row of holes makes it easy to install (on pre-installed lower bolts and gaskets for each cylinder head)
- Ideal for use in applications that require Catalytic convertors
| Bolt Size | M8 x 1.25 x 25mm |
|---|---|
| Brand | Hooker BlackHeart |
| Category | Exhaust |
| Collector Diameter | 2.50 inch |
| Emission Code | 8 |
| Engine | GEN 3 HEMI |
| Finish | Black Ceramic |
| Header Style | Manifold |
| Material | Cast Iron |
| Part Type | Exhaust Manifold |
| Primary Tube Dia. | 1-3/4 inch |
| Product Type | Manifold |
| Sub Category | Exhaust Manifolds |
| UPC | 090127137550 |
| Part Number | BHS584 |
