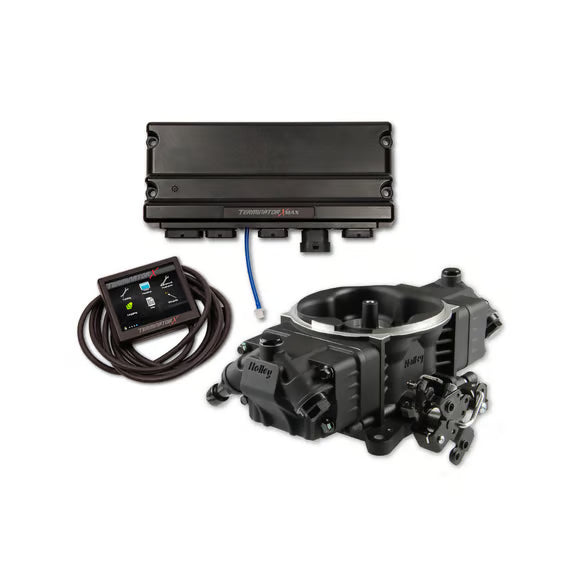

Holley EFI- 550-1029 Terminator X Max Stealth 4150 - GM LS Engines
Black - 24X Crank - Trans Control - 3.5 in. Touchscreen

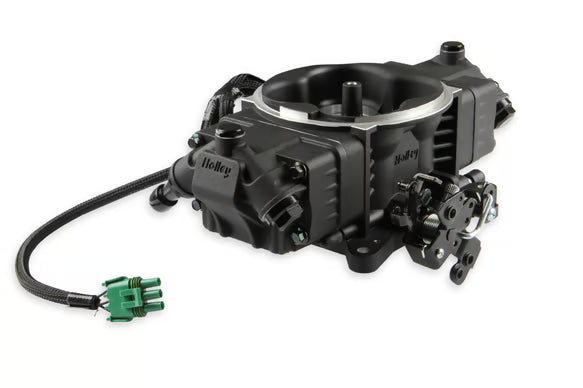

The Terminator X Stealth 4150 system features (4) 100 lb./hr. fuel injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. Taking the Stealth name, all of the wiring exits below the rear fuel injector cover for a clean installation. The timed spark port for vacuum advanced distributors is located under the front fuel bowl, giving greater access to the distributor. Air entry is machined to fit most stock air cleaners with air cleaner locator provisions. The ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle (WOT). The Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4, and Ford C4/C6 applications for making installation more convenient. These kits provide plug and play transmission control for GM 4L60 and 4L80 transmissions.
Features:
- (4) 100 lb./hr. fuel injectors supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications
- 3.5” LCD handheld touchscreen for setup, tuning, gauge displays, and other viewing parameters
- Initial handheld calibration wizard creates a base tune with no laptop needed
- Advanced annular discharge rings for more fuel flow and better fuel atomization, nearly elimating the fuel delay issues found on other designs
- Bosch LSU 4.9 Wideband Oxygen (O2) Sensor for maximum performance on real time fuel map learning
- OEM style TPS/IAC robust design for longevity
- Internal 1 Bar MAP sensor built into the ECU
- Bolt on 4150 flange carburetor replacement fits many factory intake manifolds
- Air entry is machined to fit many stock style air cleaners with air cleaner locator provisions
- Plug and play transmission control for GM transmissions
- Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle (WOT)
- All wiring exits below the rear fuel injector cover for a stealth installation
- For 24x or 58x GM LS engines
- Four inputs include 12V, ground, 5V, and frequency, for pressure sensors, activation triggers, trans brake, etc.
- Fuel and Oil Pressure inputs are pre-terminated
- Four outputs include ground, PWN-, for fans, boost and nitrous control, IAC, etc.
- Requires an external fuel pressure regulator with base pressure set to 58.5 PSI (Holley P/N 12-886 or equivalent)
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| California Proposition 65 | Yes |
| CAN-BUS Support | Yes |
| Category | Air and Fuel Delivery |
| Fuel Injection - EFI | |
| CFM | 950 |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Black |
| Crank Reluctor | 24x |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Black |
| Flange Size | 4150 |
| Flange Style | Squarebore |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Idle Air Control Motor Included | No |
| Ignition Timing Control | Yes |
| Ignition Type | GM LS 24x |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 6AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1 Bar |
| Max Horsepower Rating | 650 |
| Mounting Hardware Included | No |
| Multi-Stage Nitrous Control | Yes |
| Part Type | Fuel Injection System |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Sub Category | Fuel Injection System and Related Components |
| Terminator LS Options | Fuel, Spark, Transmission |
| Throttle Bore | 1.75 in. |
| Throttle Position Sensor Included | Yes |
| Transmission | 4L60E/4L80E |
| Universal Or Specific Fit | Universal |
| User-Tuneable | Yes |
| UPC | 090127107638 |
| Part Number | 550-1029 |
