Holley- 12-846 HP Billet EFI By Pass Fuel Pressure Regulator
Street/Strip EFI Applications Two Port Adjustable from 15 to 65 PSI Boost Reference - 1:1
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.
Features:
- Adjustable from 15-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems with a return line back to tank
- Includes fitting for manifold reference
- Use with electric pumps only
- (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
- 1/8" NPT gauge port
- Designed for use with the Holley® HP™ in-line fuel pumps or other high pressure electric pumps where return line is needed

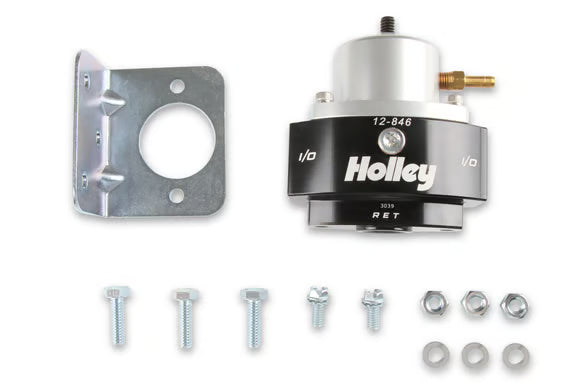

- Mounting bracket included
| Adjustable | Yes |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Black Anodized |
| Emission Code | 5 |
| Fuel System | EFI |
| Fuel Type | Diesel |
| Gasoline | |
| Gauge Port | Yes |
| Grade Type | Performance |
| Inlet Quantity | 1 |
| Inlet Size | 8 AN O-Ring |
| Inlet Type | 8 AN ORB |
| Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Type | Inline |
| Outlet Quantity | 1 |
| Outlet Size | 8 AN O-Ring |
| Outlet Type | 8 AN ORB |
| Part Type | Fuel Pressure Regulator |
| Port Quantity | 3 |
| Pressure Range | 15-65 PSI |
| Product Type | Fuel Pressure Regulator |
| Return Size | 6 AN O-Ring |
| Style | Bypass |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127670507 |
| Part Number | 12-846 |
