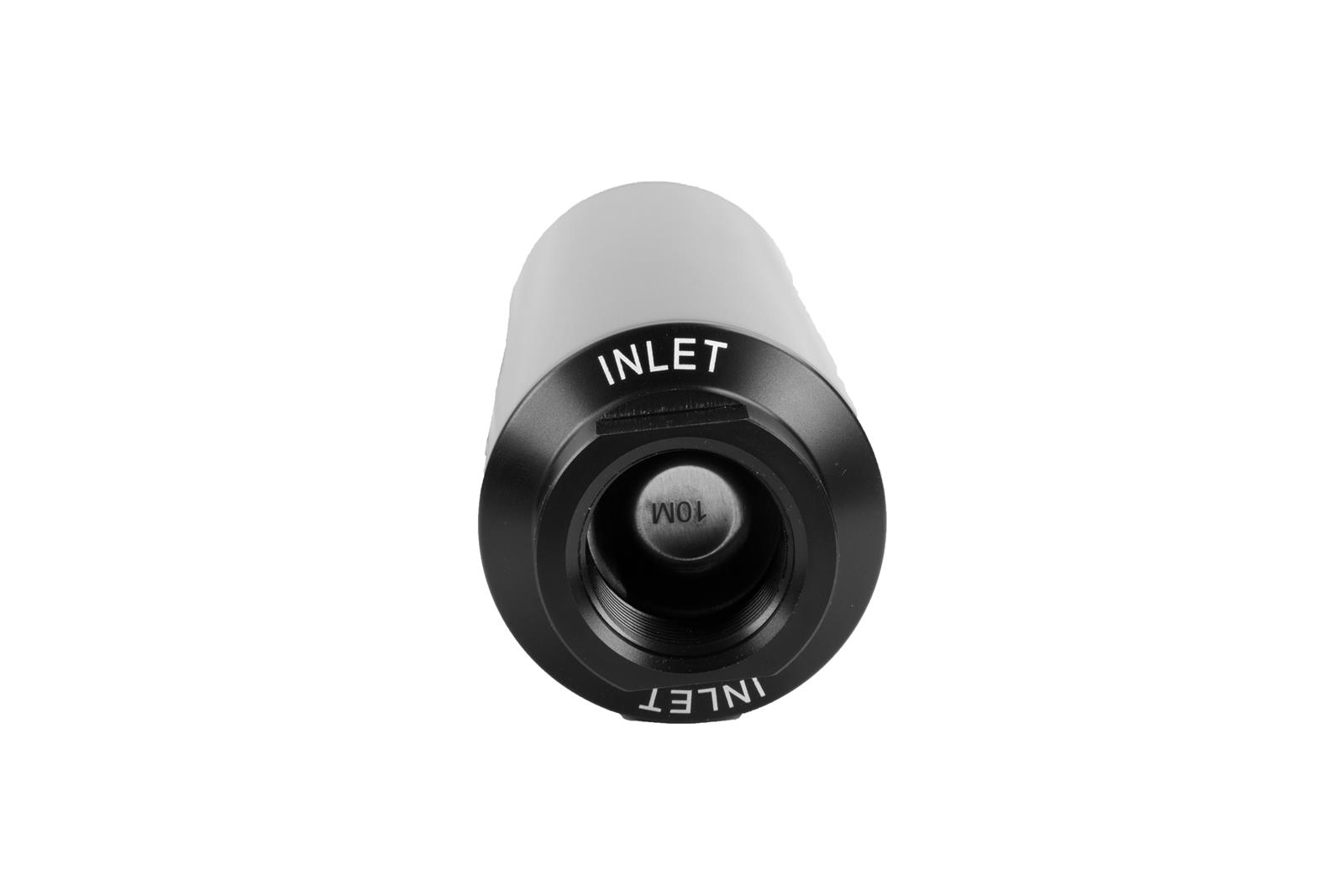

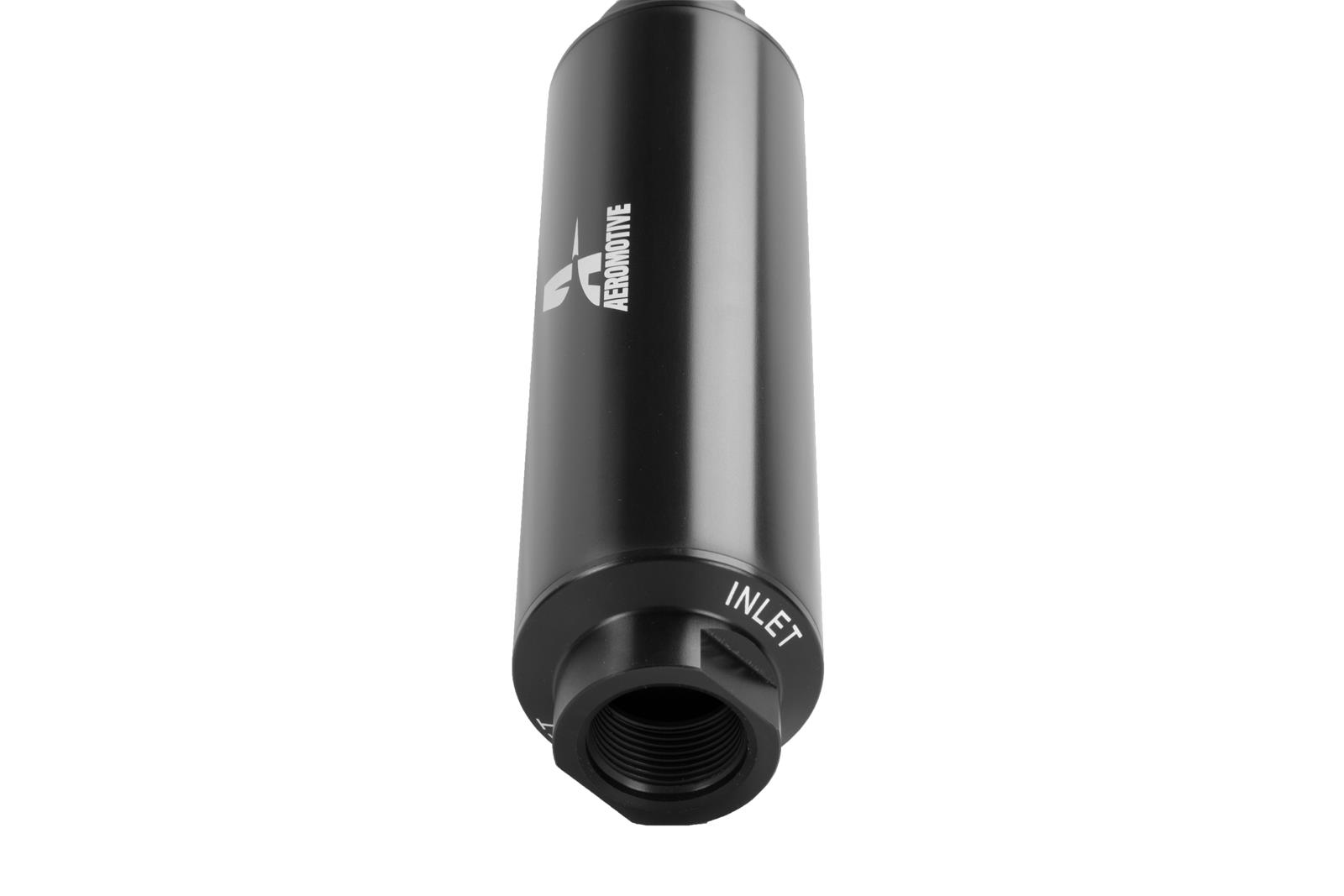

100 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Stainless Mesh Element
P/N 12362: Extreme Flow 100-m SS AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps
High-flow Stainless Steel filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Suitable prefilter with mechanical or electric pumps up to 12-GPM. Suitable post filter for mechanical injection systems up to 32-GPM mechanical pumps.
- High-flow, 100-micron Stainless Steel cleanable element.
- Ideal for Gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
- Prefilter for up to 12-GPM mechanical or electric fuel pumps.
- Post filter for 32-GPM mechanical fuel injection systems.
- Flows 6,000 lb/hr (12-GPM) with a pressure drop under 1-PSI.
- Flows 12,000 lb/hr (32-GPM) with a pressure drop of 2-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.
- 10" long x 2-5/8" diameter.

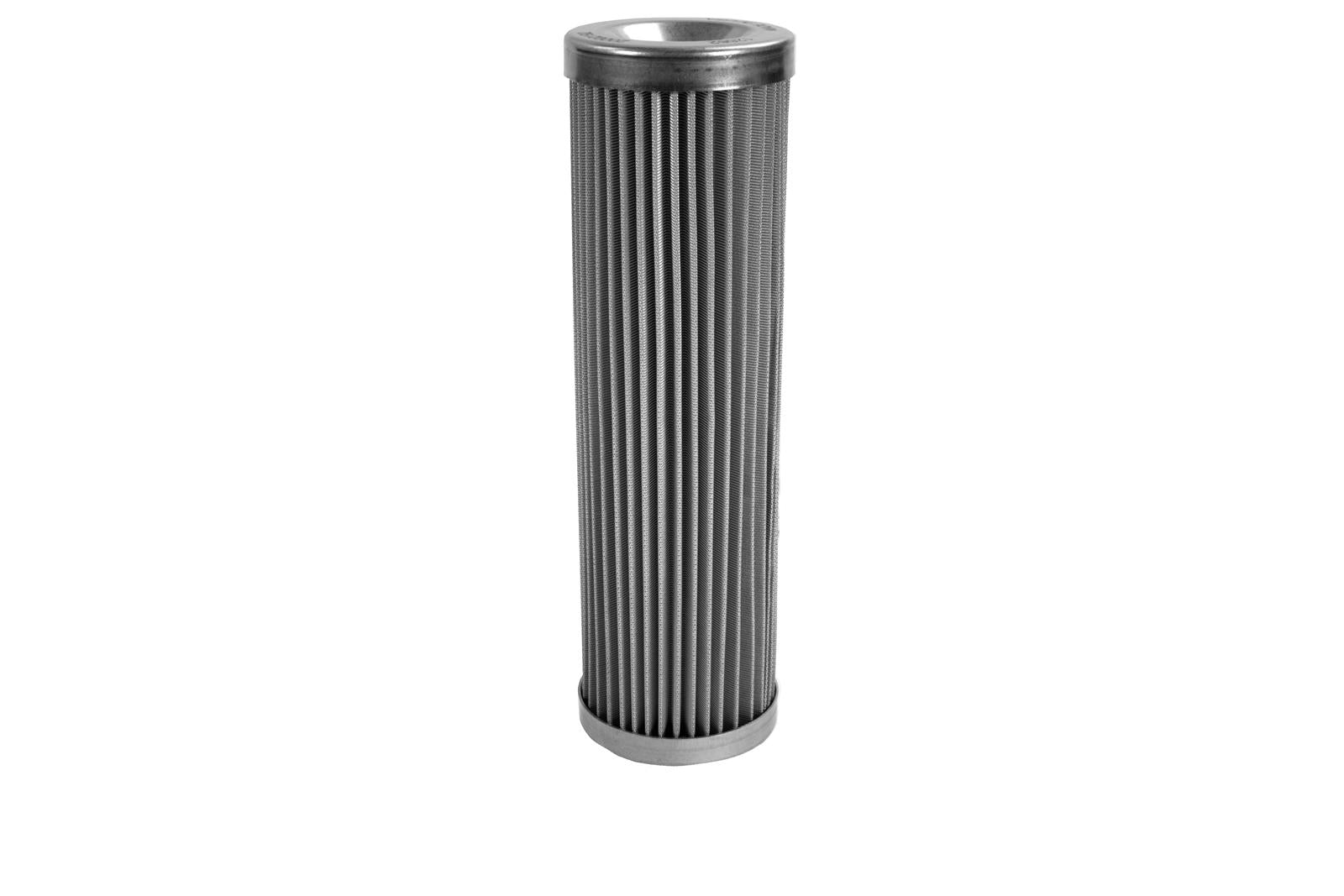

- Replacement element P/N 12662
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications. Specialized filter media for gas, ethanol and methanol fuels available. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
High-flow Stainless Steel filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
Suitable prefilter with mechanical or electric pumps up to 12-GPM. Suitable post filter for mechanical injection systems up to 32-GPM mechanical pumps.
- High-flow, 100-micron Stainless Steel cleanable element.
- Ideal for Gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
- Prefilter for up to 12-GPM mechanical or electric fuel pumps.
- Post filter for 32-GPM mechanical fuel injection systems.
- Flows 6,000 lb/hr (12-GPM) with a pressure drop under 1-PSI.
- Flows 12,000 lb/hr (32-GPM) with a pressure drop of 2-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.
- 10" long x 2-5/8" diameter.
- Replacement element P/N 12662
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | All Fuels |
| Inlet Quantity | 1 |
| Inlet Size | AN-16 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-16 |
| Outlet Quantity | 1 |
| Outlet Size | AN-16 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-16 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-16 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Micron Rating | 100 |
| Smallest Particle Filtered | 100 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.0 Inches |
| Filter Housing Length | 5.5 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
