LS Valve Covers

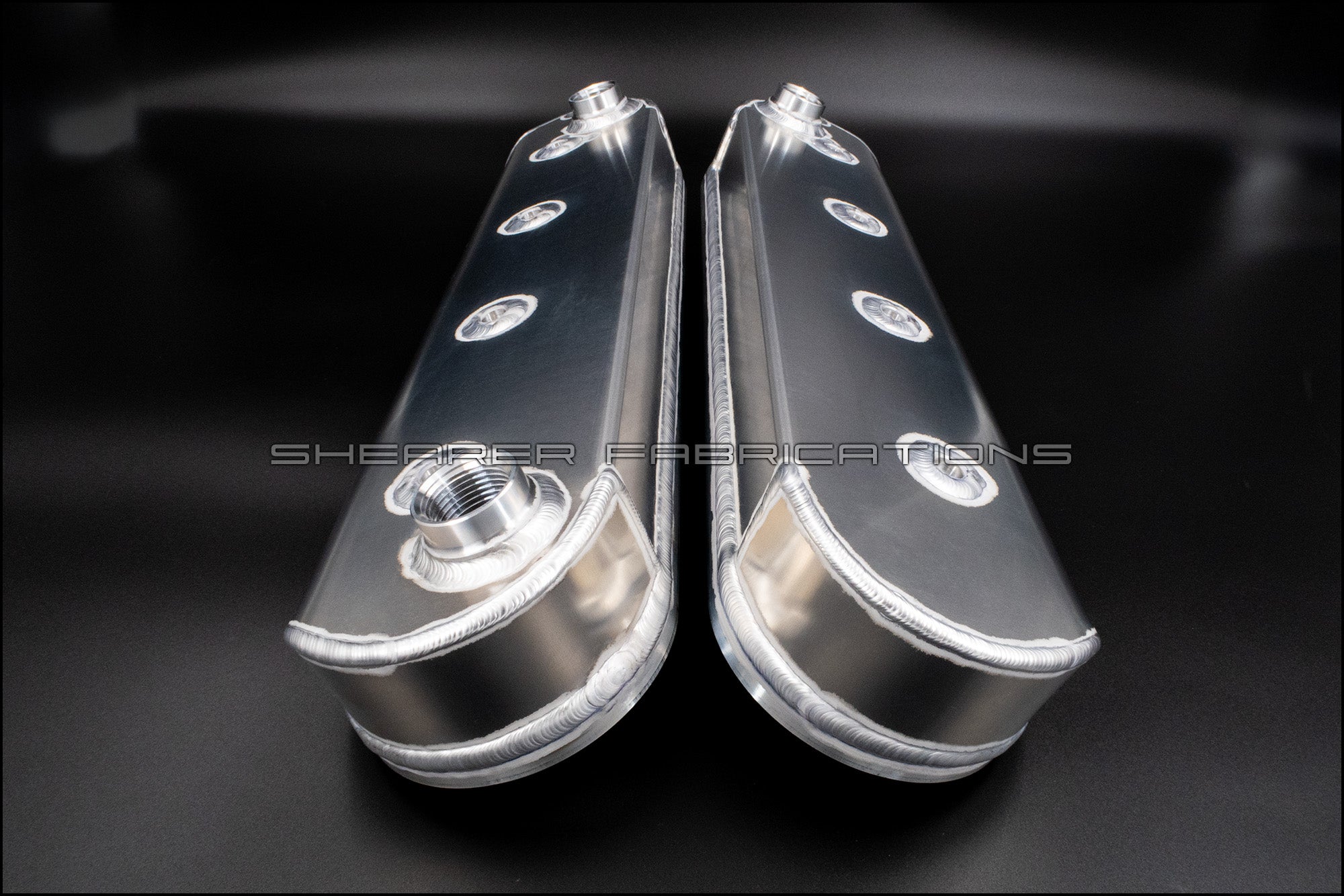

Shearer Fabrications LS Tall Sheetmetal Valve Covers. Badass covers handmade in the USA!
Features..

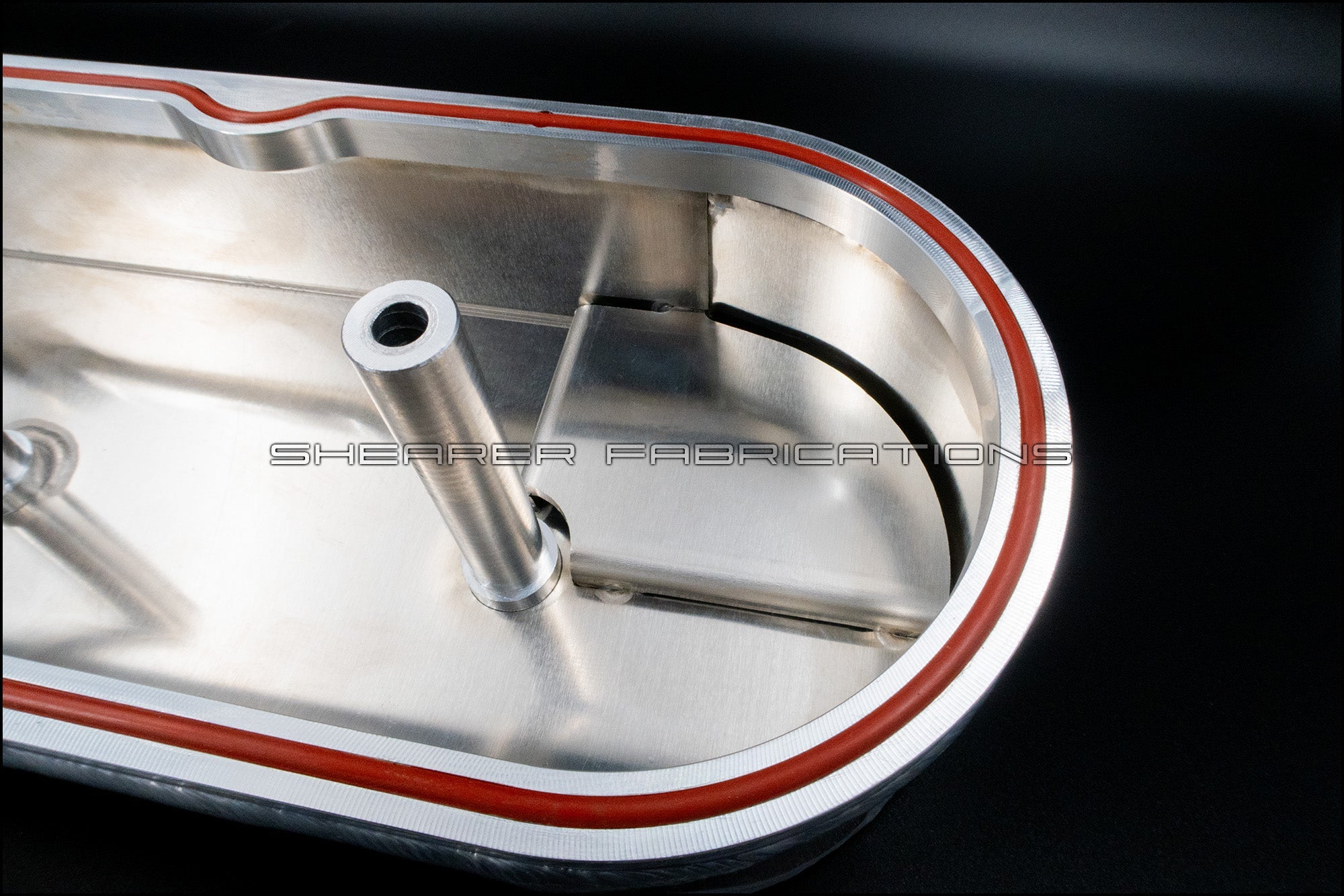

- 1/2” thick fully CNC machined rail with captive O-Ring groove.
- 1 piece Silicone O-Ring.
- Thick 1/8” aluminum sheetmetal. Radiused exhaust side for plenty of clearance for up & forward headers.

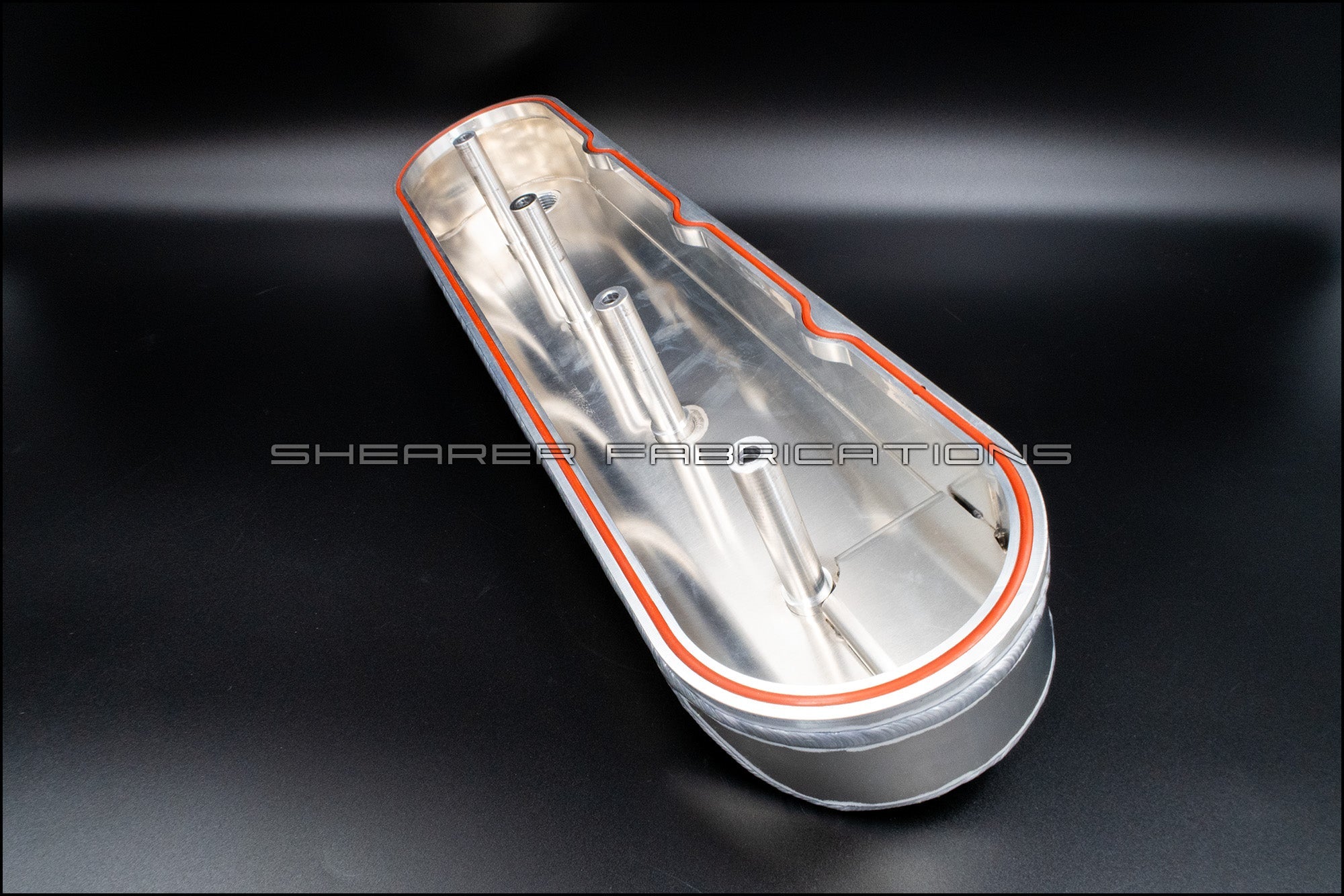

- Full length bolt stanchions!! Makes fastening to the cylinder extremely easy. And you will not collapse your covers when torquing them down!!
- Left & Right covers.

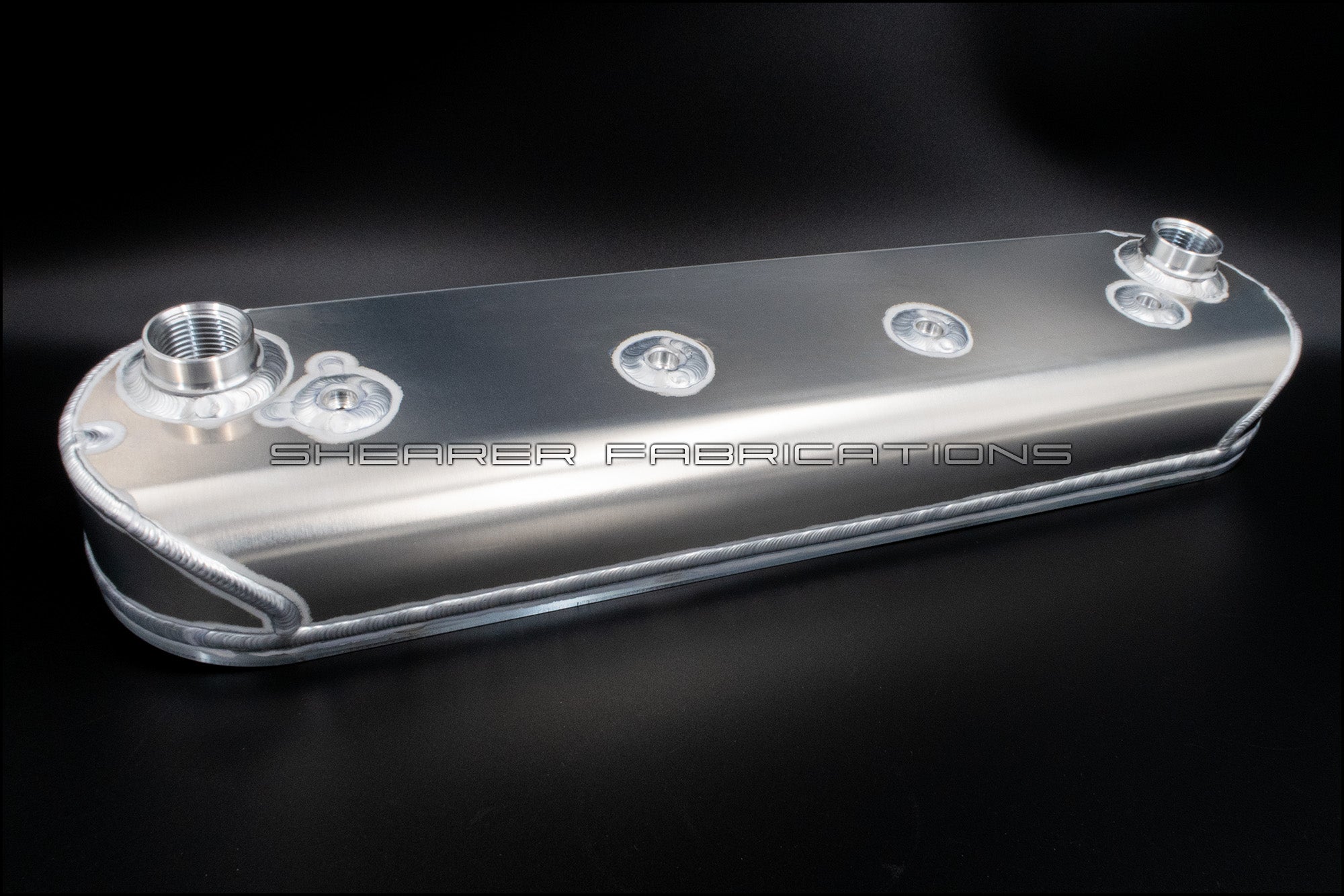

- Baffled 12 ORB breather port on each cover.

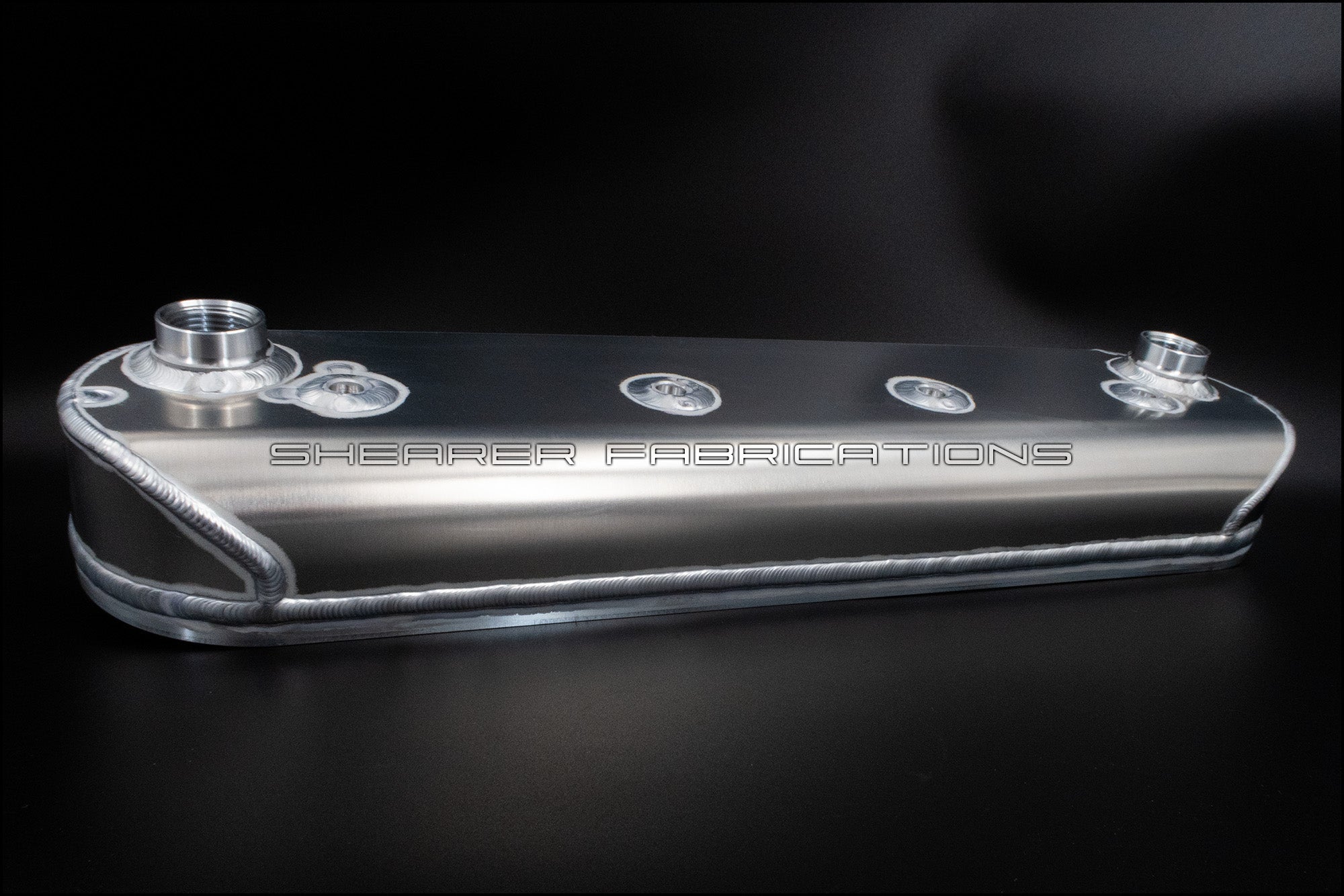

- Extra 12 ORB oil fill port on on the right cover.
- Pre-Installed O-Ring seal.
- Stainless bolts with O-Ring seal.
- 2.2” of internal height for all the valvetrain clearance.
- 1.9" to bottom of baffle.
- Billet coil mounts for truck & IGN1A coils are coming soon.
**Please note these Valve Covers are designed for use with an OE Rocker Stand height. Measured from the valve cover rail to the top of the bolt stands should be .68". Aftermarket cylinder heads may have modified rocker stand geometry and require the length of the Valve Cover Stanchions to be shortened for the VC to properly seal on the cylinder head.

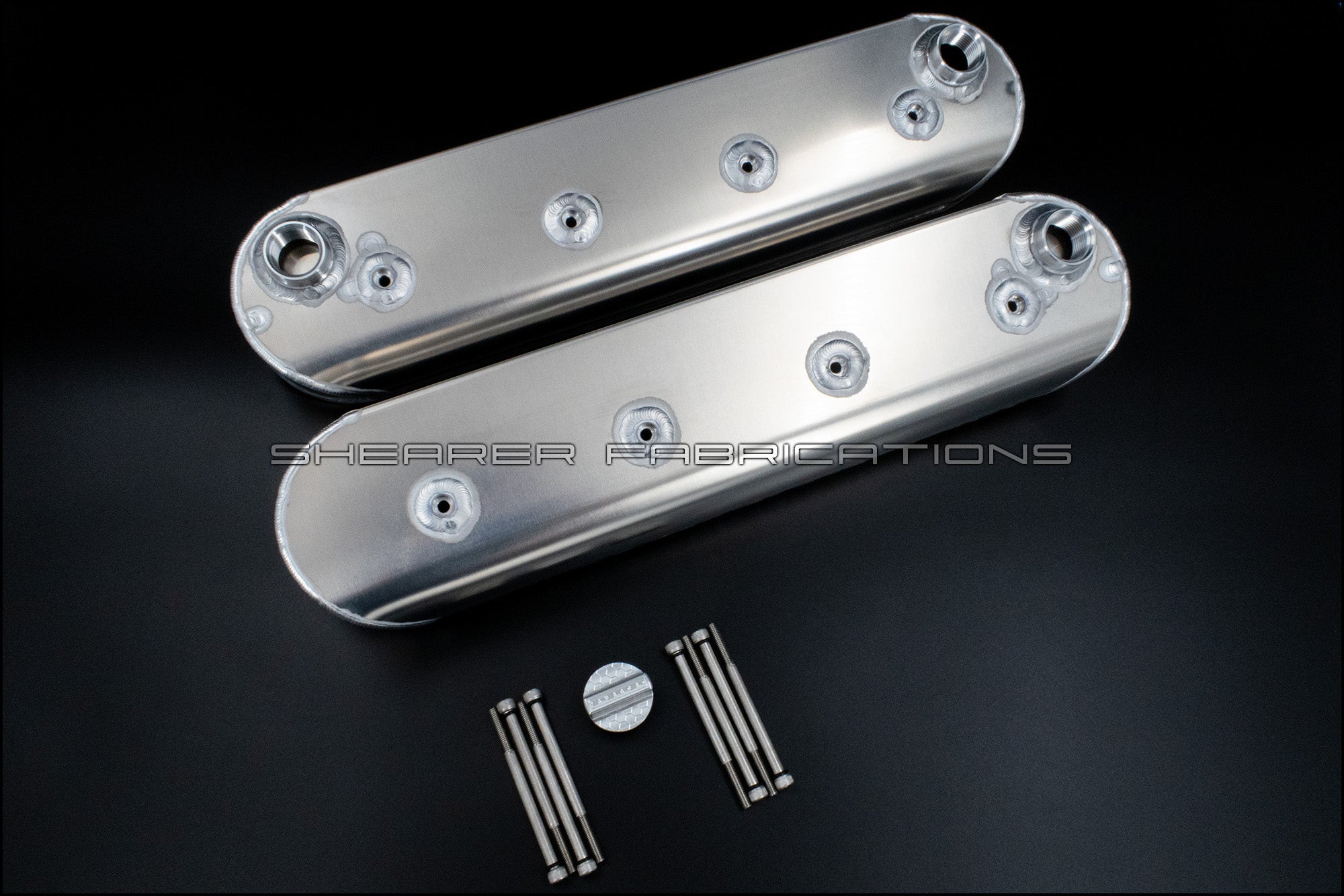

Includes:
- Left & Right Covers
- (2) - O-Ring Gaskets

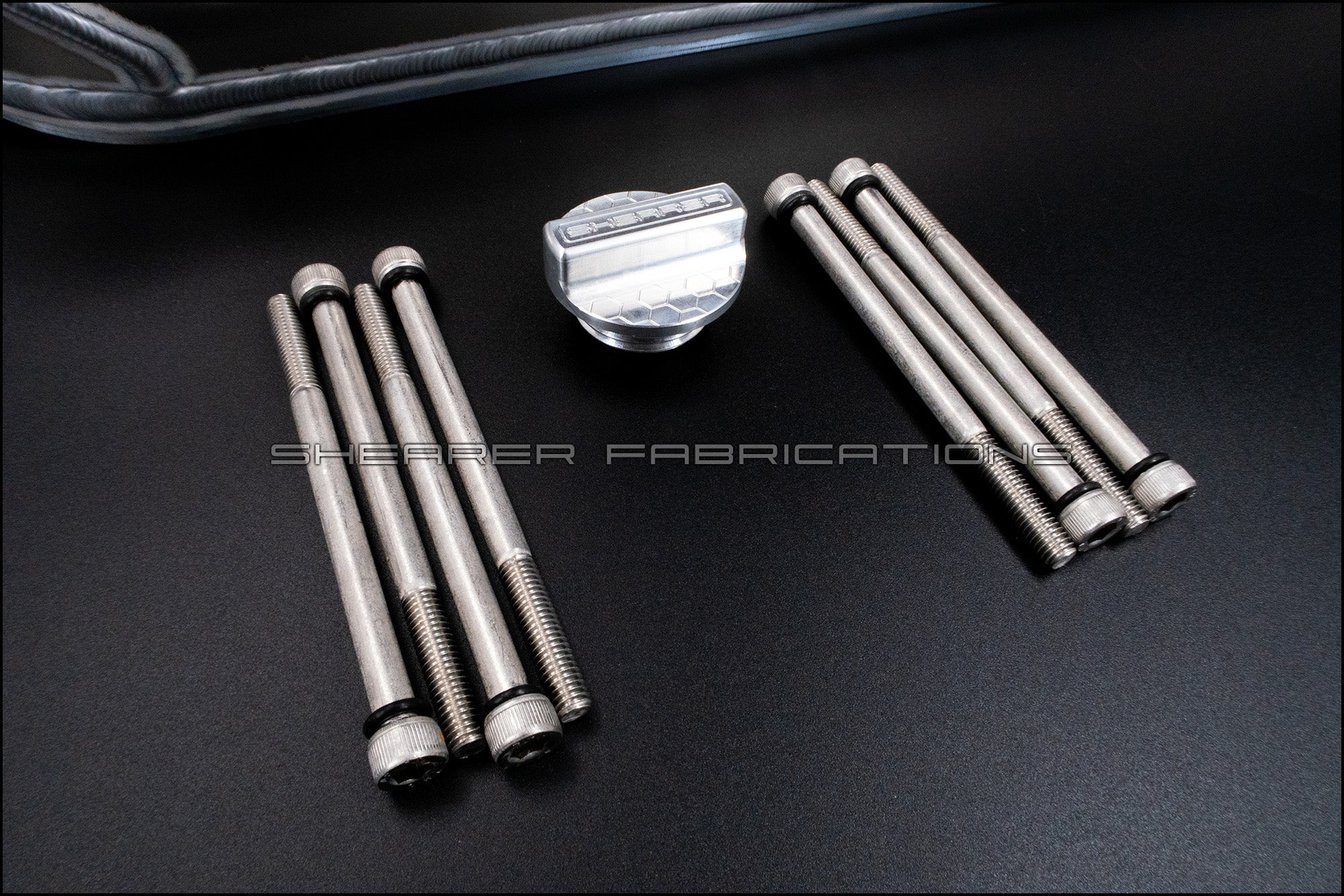

- (8) - Stainless fasteners w/ O-Ring seal.

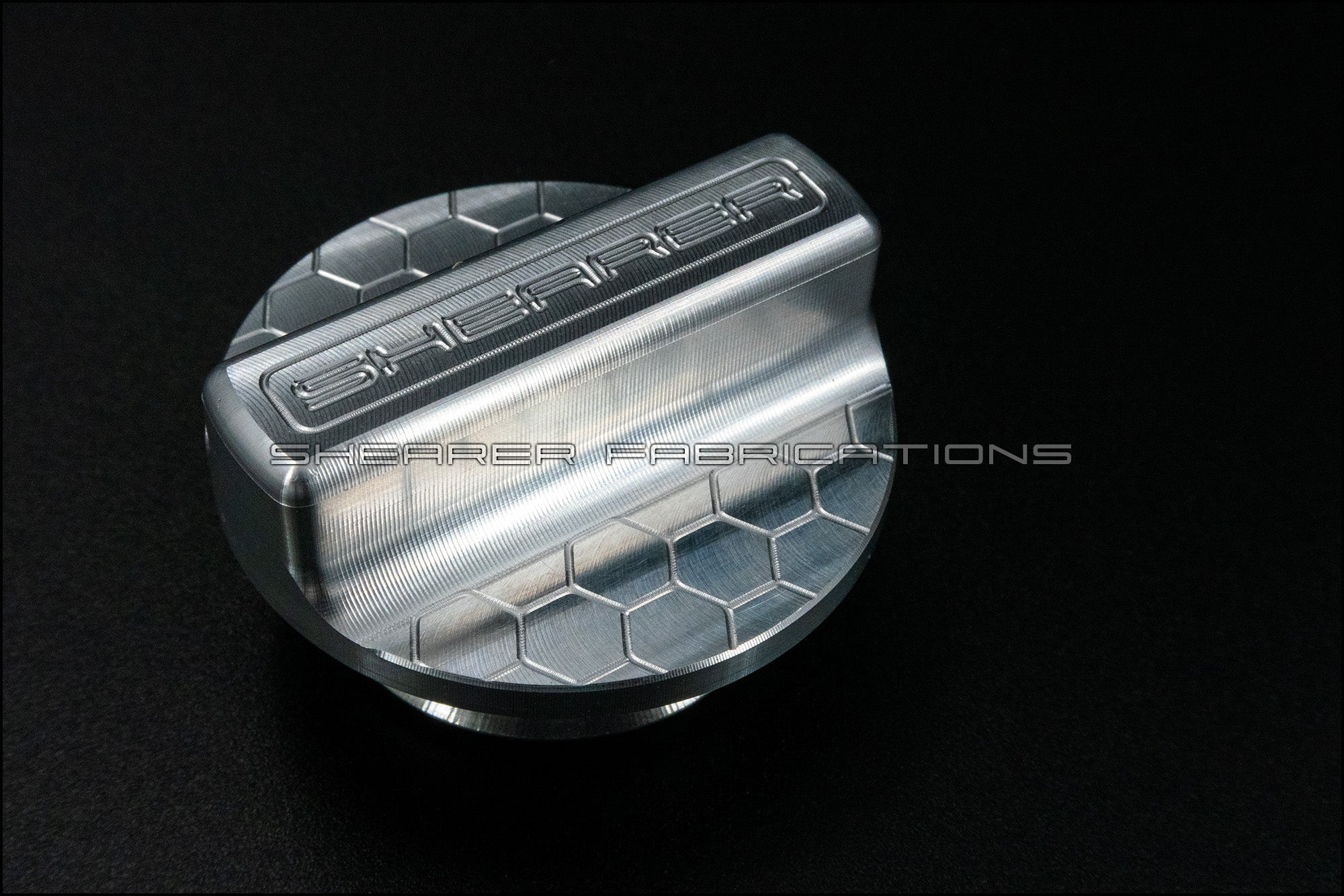

- (1) -12 ORB Cap.
***Installation Instructions. Click Here.
