AlloyWerx LS3 / Square Port Billet Intake

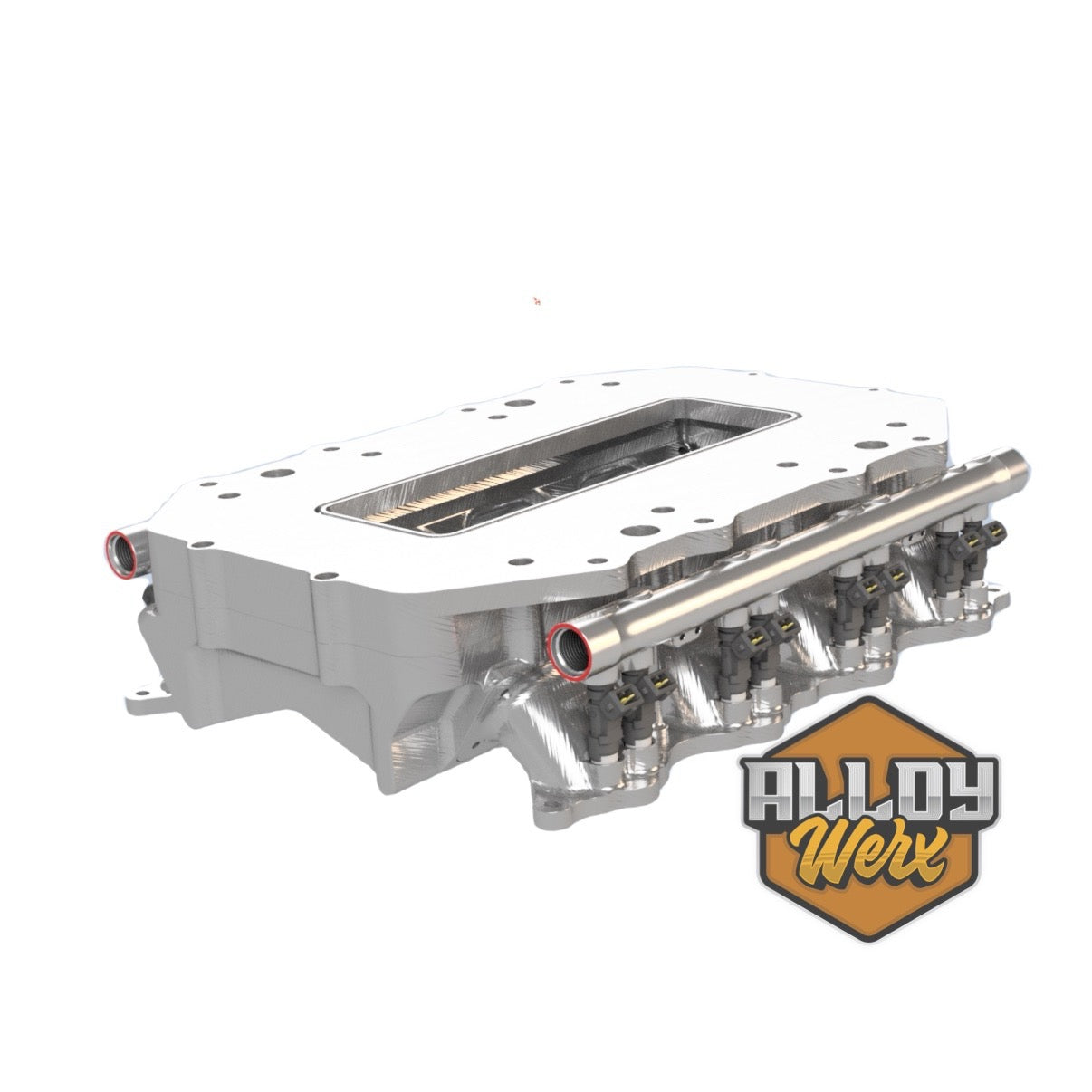

AlloyWerx Billet Intake Manifold – LS3 / SQUARE PORT
Designed from OEM CAD data for perfect fitment and built with a performance-first mindset, the AlloyWerx billet intake manifold is the ultimate upgrade for serious builds. Whether you're naturally aspirated, boosted, or twin-injected, this modular intake adapts to your power goals.
✅ Key Features:
- Modular Core Design: Available with or without our proprietary air-to-water intercooler core (rated for 2200+ HP)

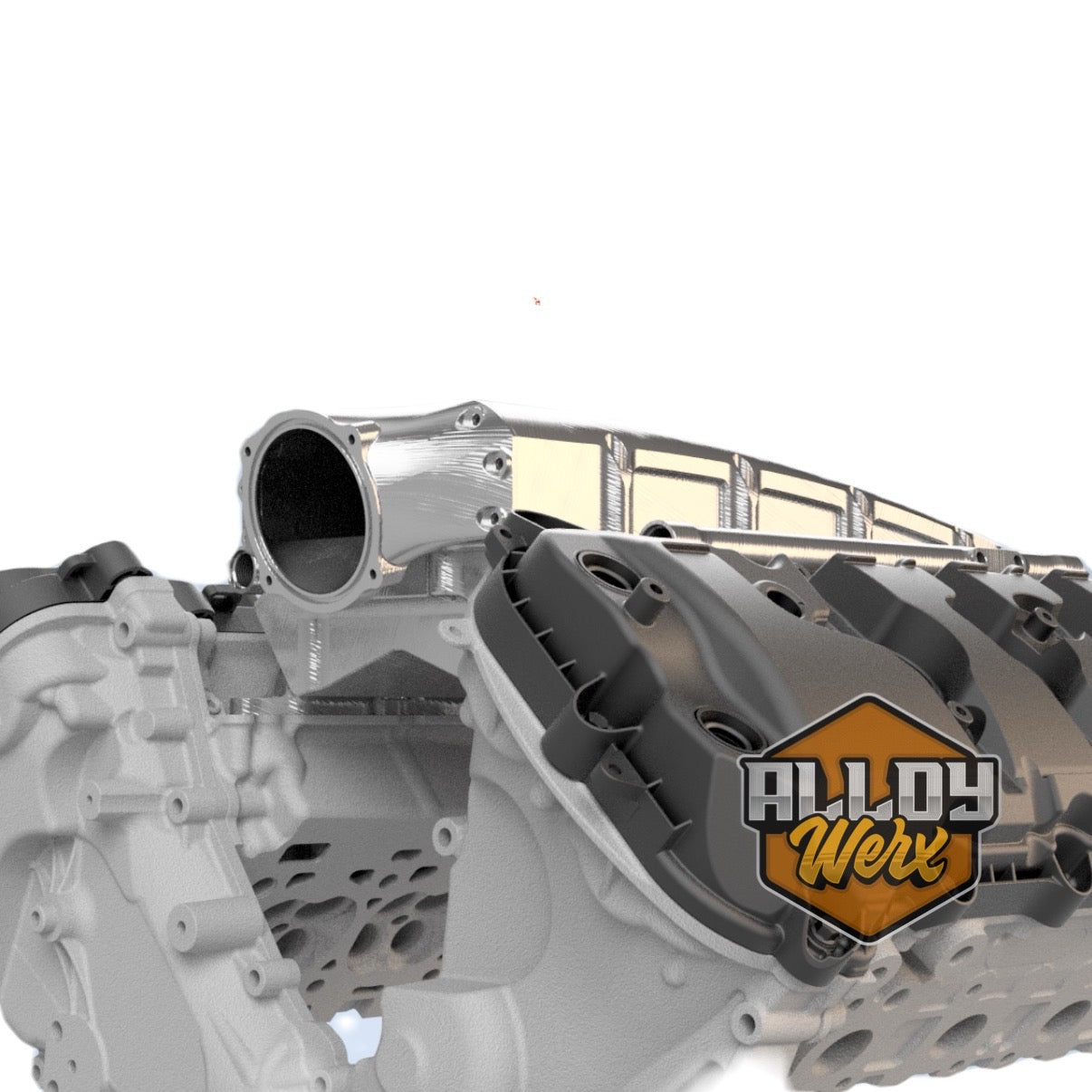

- Fits LS3 Square Port Heads
- Optimized runner geometry and plenum design for improved airflow and throttle response
- 105mm LS Throttle body Snout
-
Designed using OEM CAD data for perfect fitment and optimized runner approach
- Blower Configuration: Configurable to mount a 6-71, 8-71, or 10-71 screw-type supercharger (can be used with or without inner cooler core)
🔧 Performance Specs:
- CNC-machined from solid T6-6061 billet aluminum
- Includes high-flow -10AN fuel rails with ORB ports on both ends
- Dual 1/8" NPT boost reference ports + 1/2" NPT brake booster port
- Integrated Factory T-Map sensor port
- Dual -16ORB water cooling ports (for intercooler configuration)
- O-ring sealed, bolt-together design for a leak-free, serviceable assembly
- Complete hardware kit with stainless fasteners included
🛡️ Limited Lifetime Warranty – Covers all components against manufacturing defects and leaks.
