Holley- 300-243 351W Ford Hi-Ram Carbureted Manifold Base

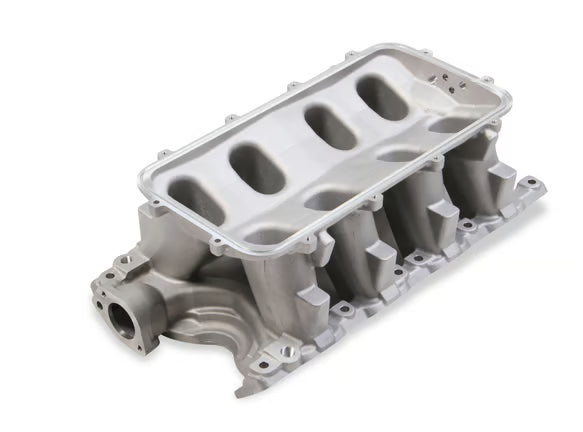

Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base
*** For carbureted applications you can use MSD PN 85787 Ford 351W Distributor with Steel Gear Manifold width is 11.32". Manifold is designed for a 9.5" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. The Hi-Ram manifold line has a new addition for the 351W Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Features:
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
- Manifold is designed for a 9.5" deck height.
- For carbureted applications use MSD PN 85787 Ford 351W Distributor with Steel Gear
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | No |
| Category | Engine |
| CNC Ported | No |
| Color | Natural |
| Construction | Cast |
| Cylinder Head Port Shape | Rectangle |
| Deck Height | 9.5 IN |
| EGR Port | No |
| Emission Code | 4 |
| Engine | Ford 351W |
| Flange Style | N/A |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carb |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold Base |
| Removable Runners | No |
| Removable Top/Lid | Yes |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | N/A |
| Throttle Body Gasket Included | No |
| Throttle Body Included | No |
| Vacuum Ports | Yes |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127029152 |
| Part Number | 300-243 |
