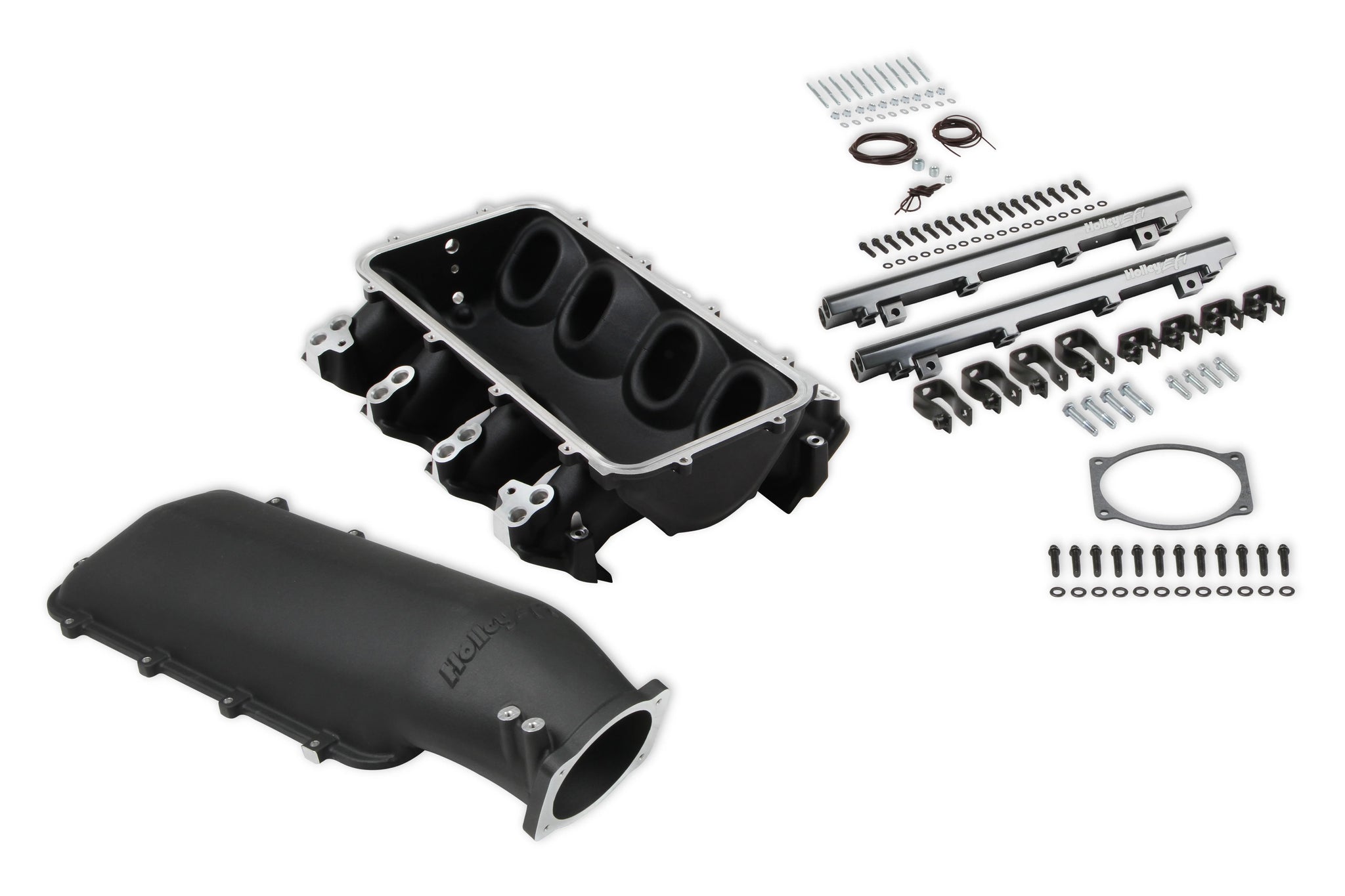

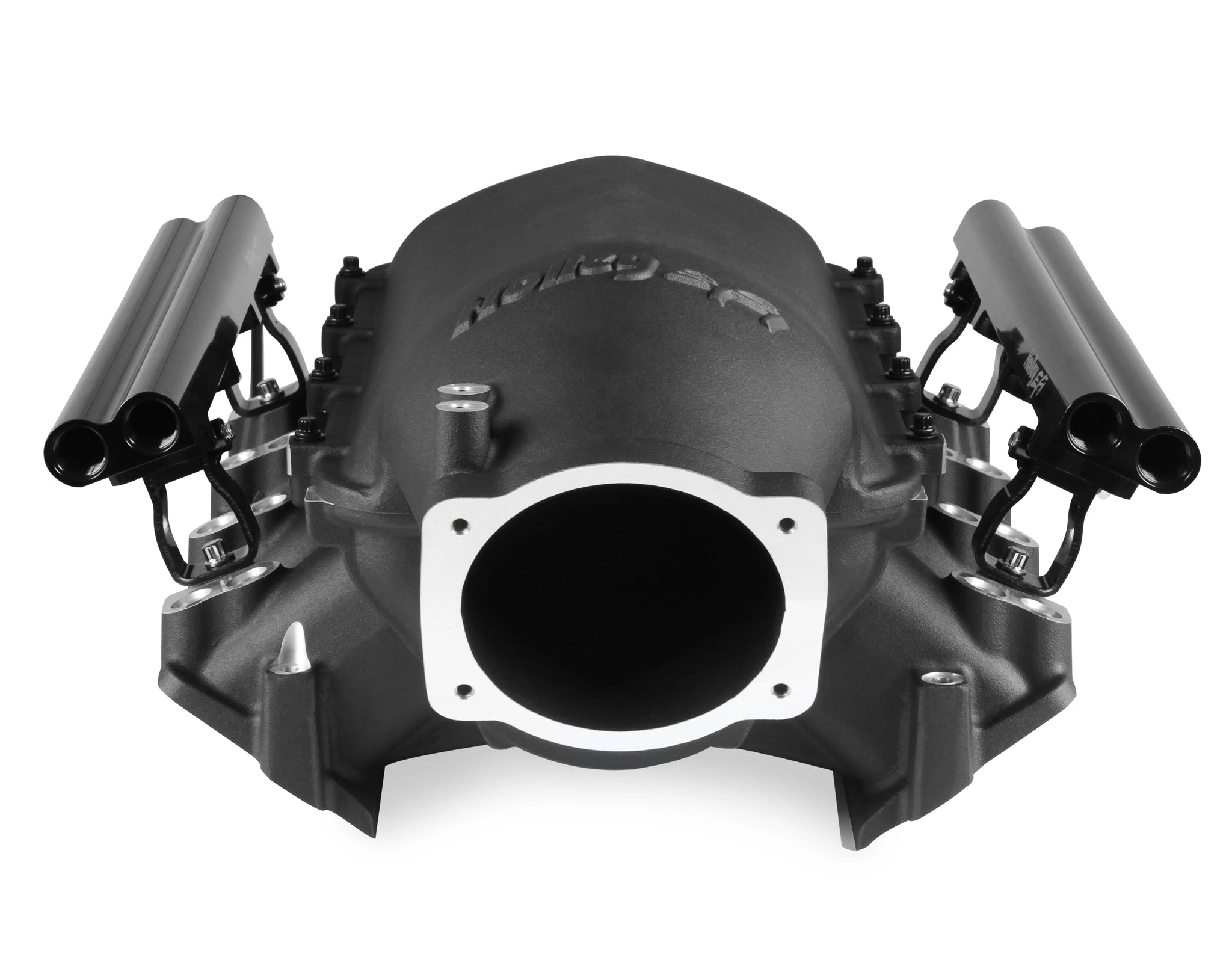

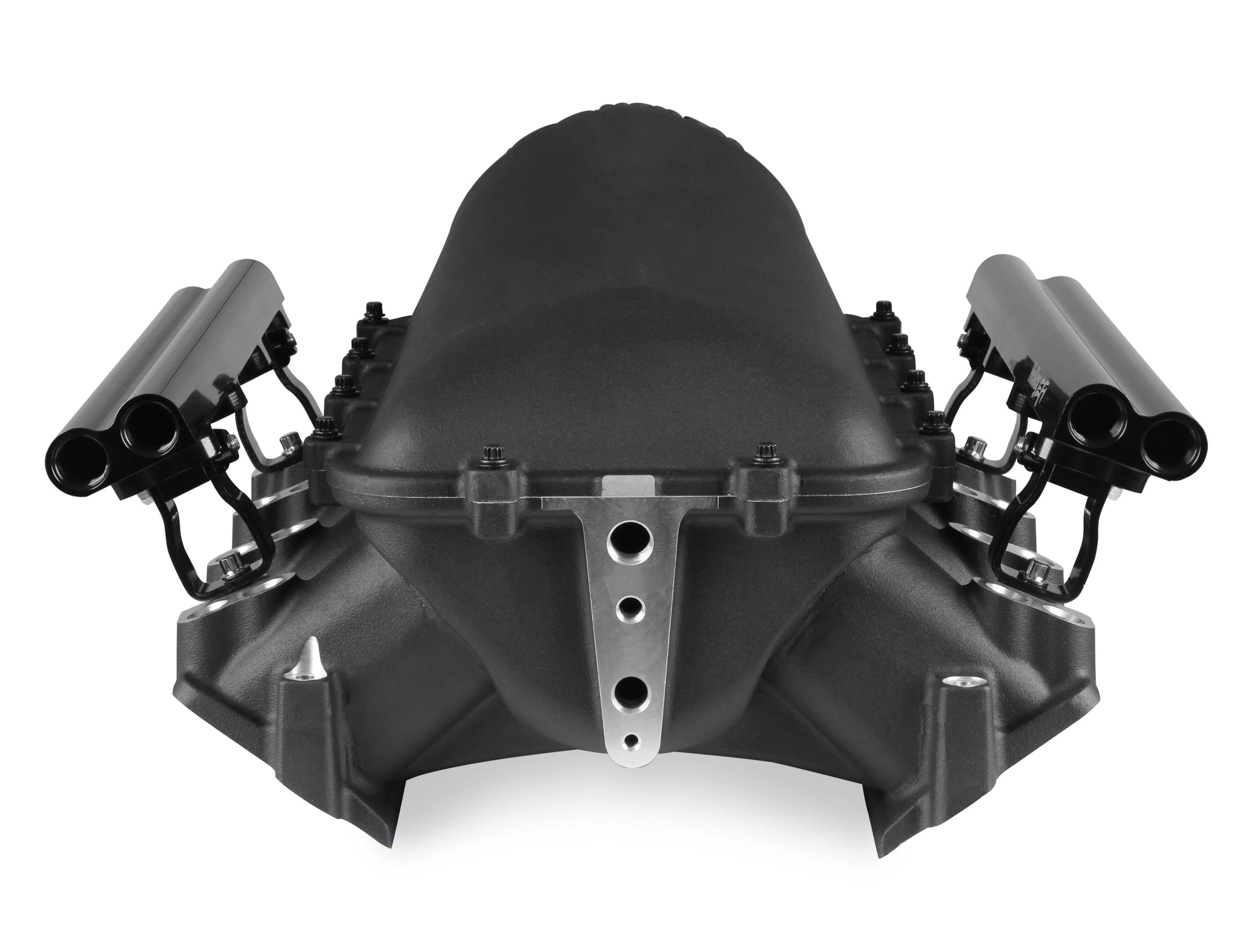

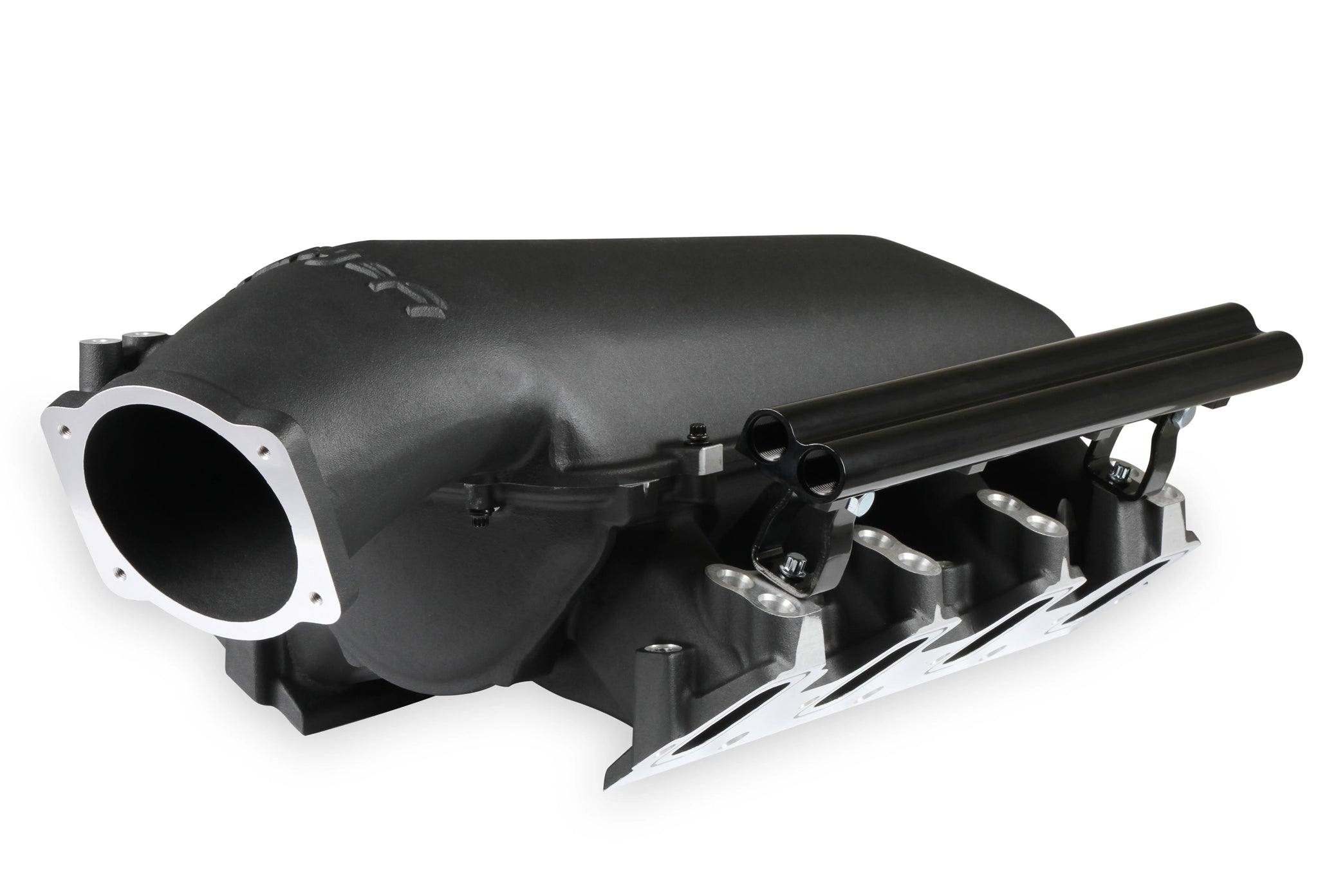

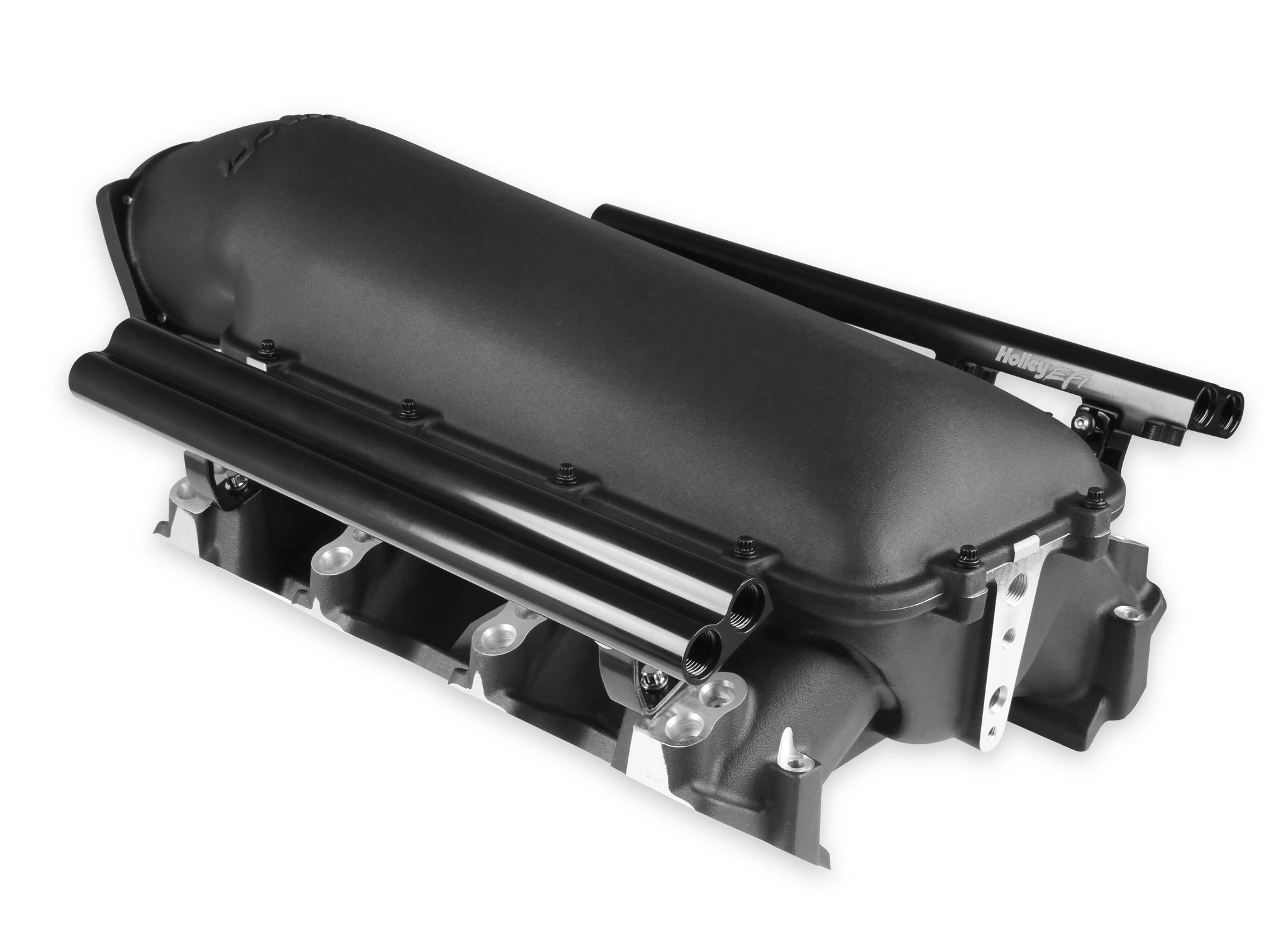

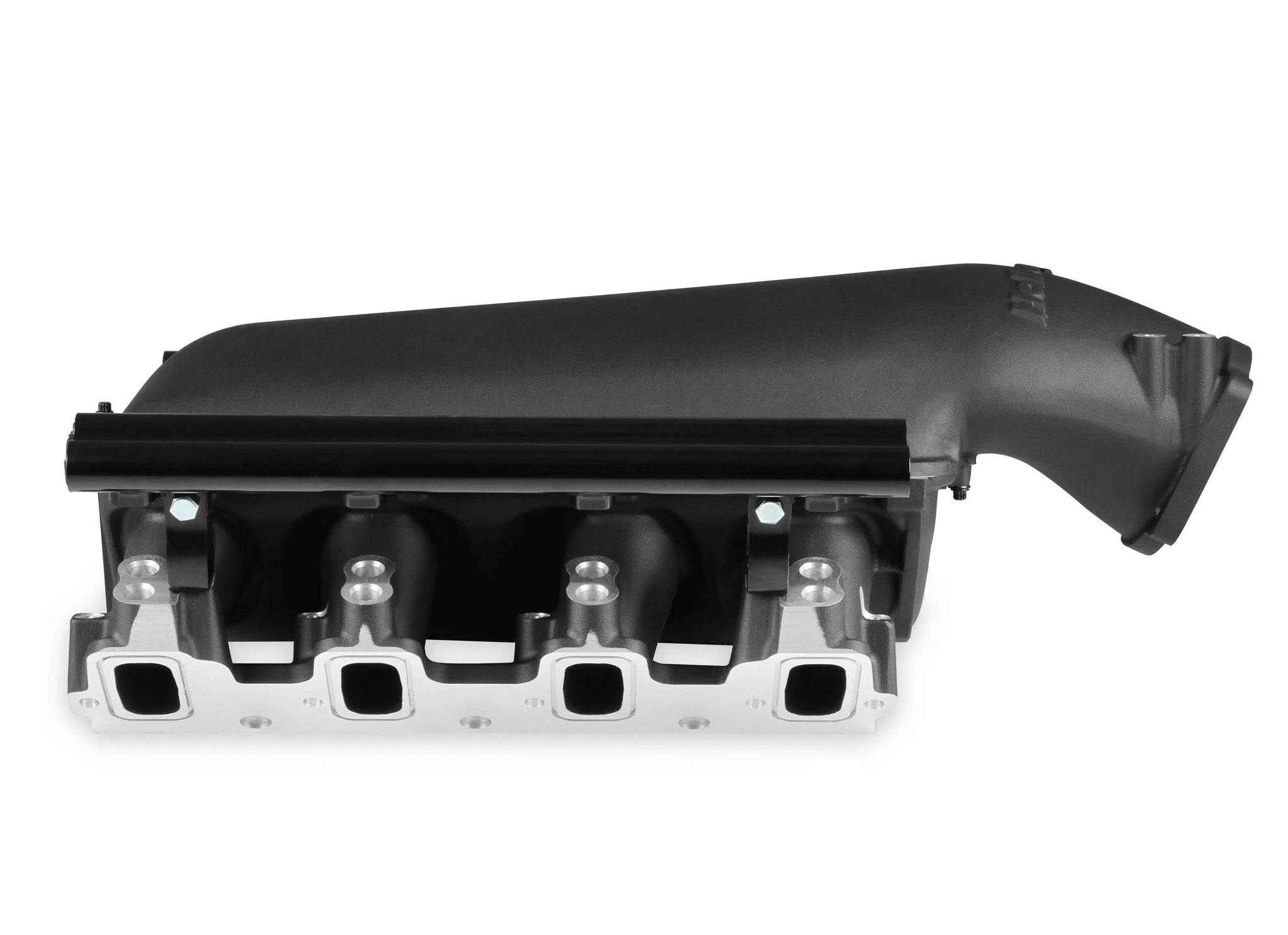

Holley 300-683BK Lo-Ram Manifold Base and Fuel Rails Dual Fuel Injector - Black - GM LS3/L92
Dual Injector Manifold and Fuel Rails- Black Finish
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN) The LS3/L92 Lo-Ram manifolds base intake manifold is designed with a low height to aid turbocharged) engine applications with peak power at 7000-8000 rpm. the packaging of a plenum mounted air-to-water intercooler for forced induction (supercharged or
Features:
- High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

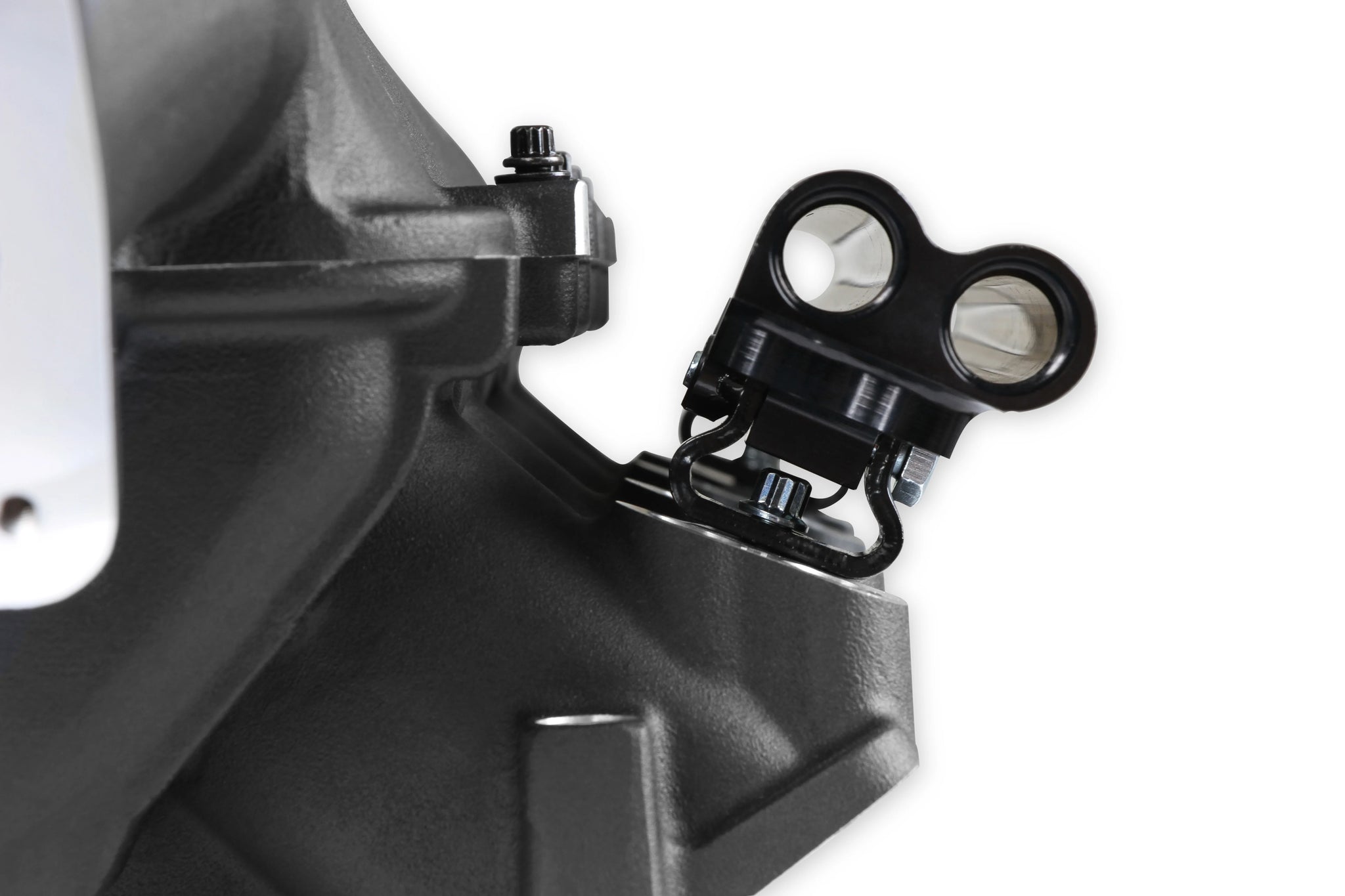

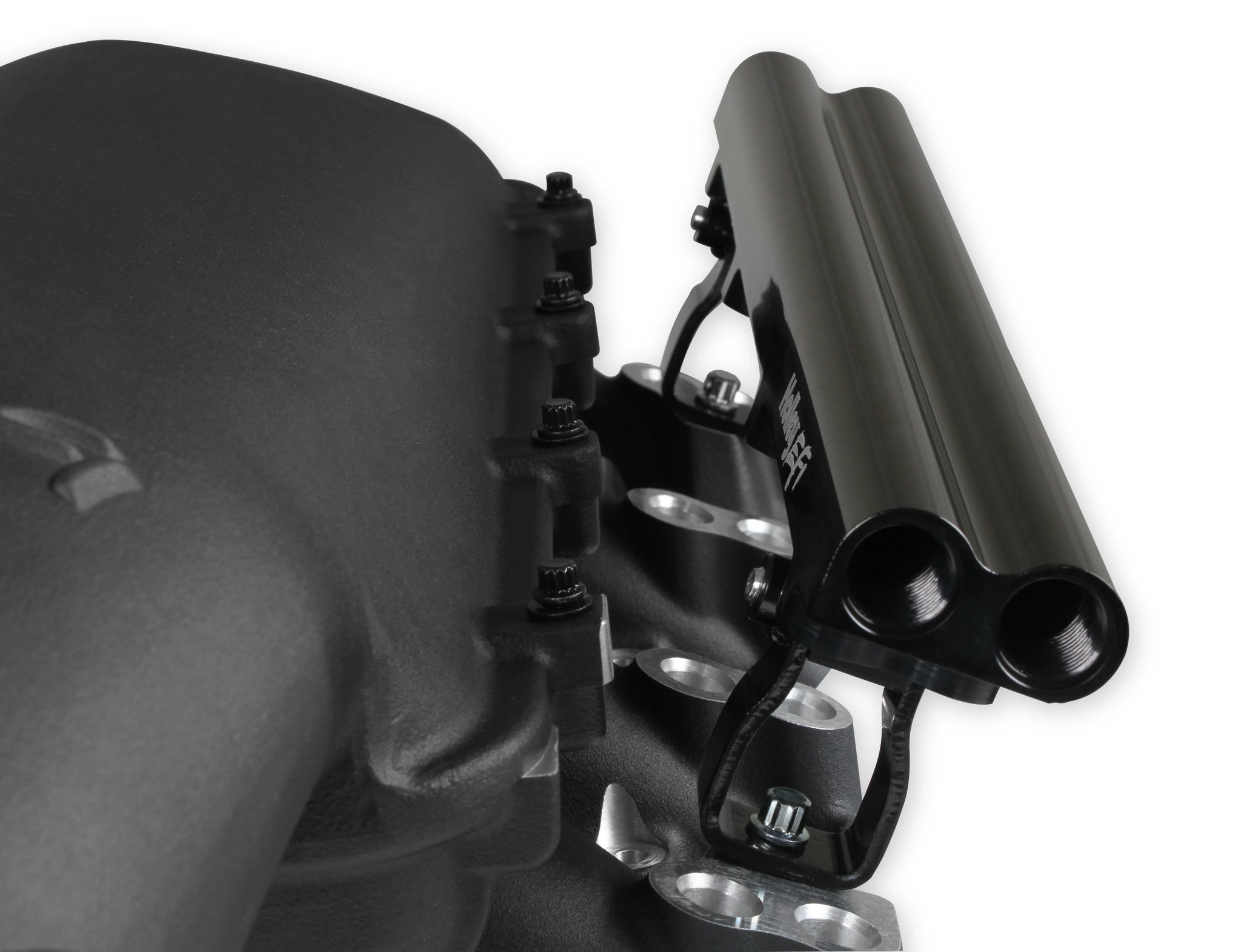

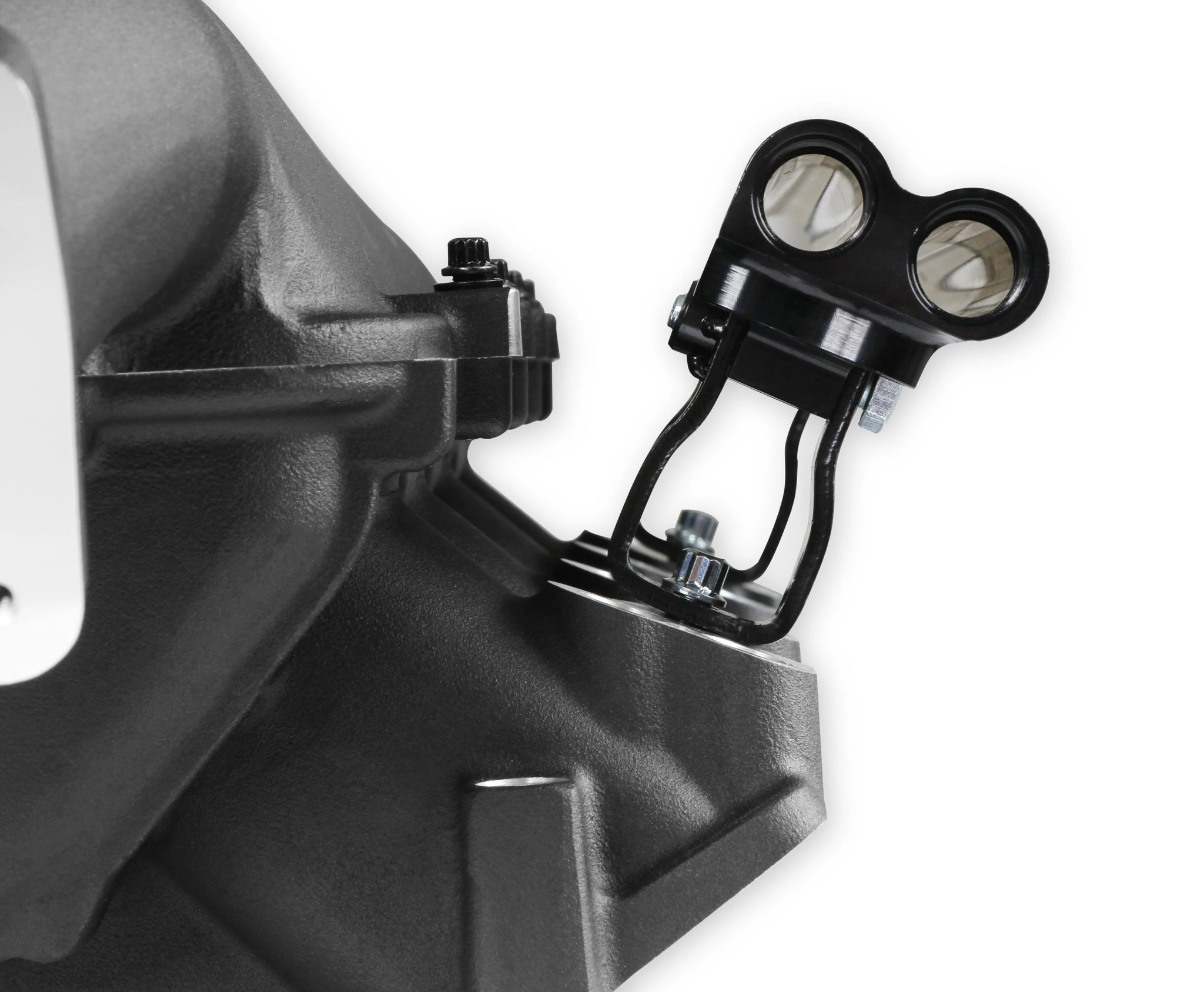

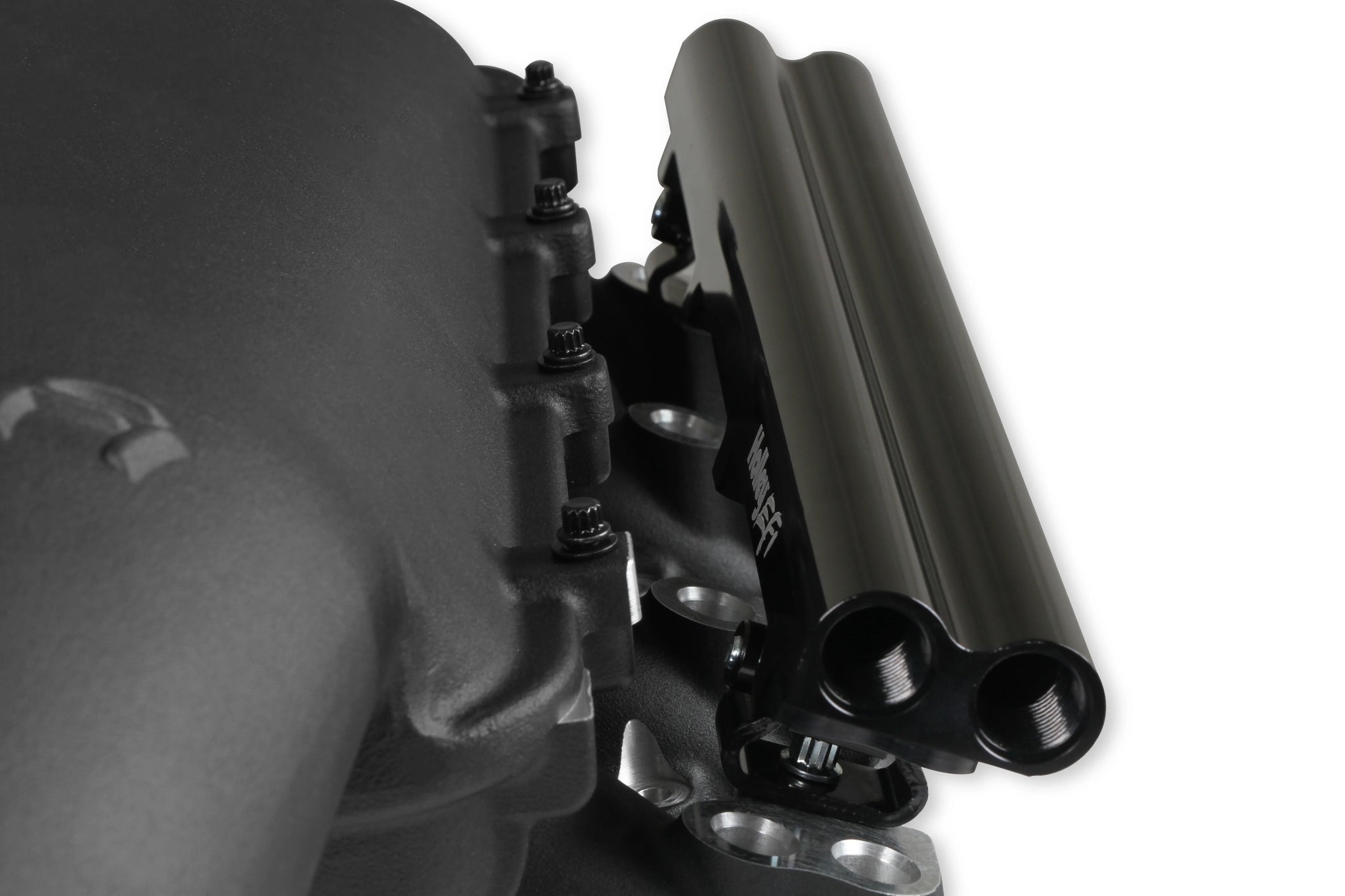

- Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
- Available with both as-cast satin and black power-coat finishes
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
| Basic Operating RPM Range | 3500-8000 RPM |
|---|---|
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Engine |
| CNC Ported | No |
| Color | Black |
| Construction | Cast |
| Cylinder Head Port Shape | Rectangle |
| Deck Height | 9.24 IN |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Flange Style | N/A |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Injector Quantity | Dual |
| Inlet Location | Top |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Lo-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Black |
| Product Type | Intake Manifold Base |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| Removable Top/Lid | Yes |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Gasket Included | Yes |
| Throttle Body Included | No |
| Vacuum Ports | Yes |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127100967 |
| Part Number | 300-683BK |
