Holley- 300-562 Chevy Big Block V8 EFI Intake
Holley EFI Intake Manifold 396, 402, 427, 454, 502 for Holley 4500 Style Flange, Oval Port Heads

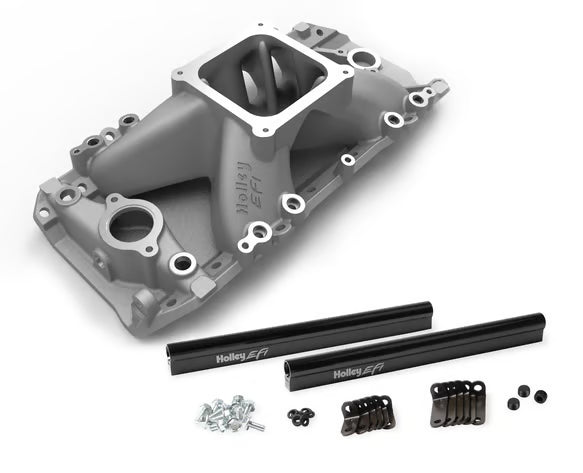

Holley EFI is excited to launch four new multi-point fuel injection intake manifolds for the big block Chevy. These new intakes are available to fit oval or rectangular port heads, and 4150 or 4500 style throttle bodies. These Intakes are ideal for converting your big block high performance or racing engine from carburetion to fuel injection. These intake manifolds were computer designed and dyno proven to produce more horse power and torque than other EFI manifolds. Each manifold package includes anodized and laser etched fuel rails, and two sets of mounting brackets (brackets allow use of 1.48" or 2.56" O-ring to O-ring injector lengths).
Features:
- Height: Front 5.96", Rear 5.96"
- Open plenum/single plane design
- 4500 carburetor mounting flange
- No EGR provisions
- Designed for today's larger cubic inch big block Chevy race engines
- 3000-7500 RPM power band

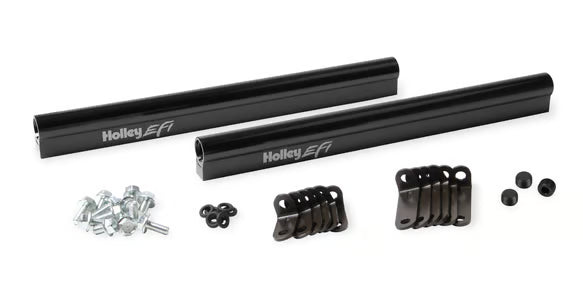

- Includes fuel rails and mounting brackets
- Perfect for hard core drag racers in the NHRA Super Comp, Super Gas, and Street classes as well as IHRA Quick Rod, Super Rod, and Hot Rod categories
- Oval Port Dimensions: 1.87” High x 1.60” Wide
| Basic Operating RPM Range | 3000-7500 RPM |
|---|---|
| Brand | Holley EFI |
| Carburetor Flange | Dominator/4500 |
| Carburetor Quantity | 1 |
| Carburetor Studs Included | No |
| Category | Engine |
| CNC Ported | No |
| Color | Natural |
| Construction | Cast |
| Cylinder Head Port Shape | Oval |
| Deck Height | 9.8 IN |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Flange Style | Dominator/4500 |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | High Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | EFI Intake Manifold |
| Removable Runners | No |
| Removable Top/Lid | No |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 5 IN |
| Throttle Body Gasket Included | No |
| Throttle Body Included | No |
| Vacuum Ports | Yes |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127716496 |
| Part Number | 300-562 |
