Holley- 300-561 Manifold Chevy Big Block V8 EFI
Holley EFI Intake Manifold 396, 402, 427, 454, 502 for 4150 Style Flange, Oval Port Heads

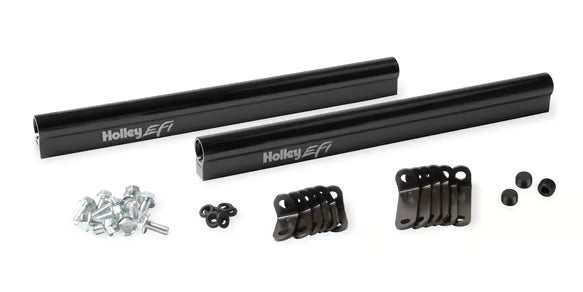

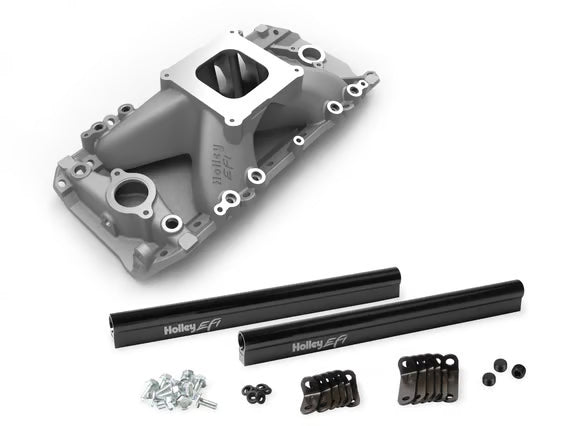

Holley EFI is excited to launch four new multi-point fuel injection intake manifolds for the big block Chevy. These new intakes are available to fit oval or rectangular port heads, and 4150 or 4500 style throttle bodies. These Intakes are ideal for converting your big block high performance or racing engine from carburetion to fuel injection. These intake manifolds were computer designed and dyno proven to produce more horse power and torque than other EFI manifolds. Each manifold package includes anodized and laser etched fuel rails, and two sets of mounting brackets (brackets allow use of 1.48" or 2.56" O-ring to O-ring injector lengths).
Features:
- Perfect for hard core drag racers in the NHRA Super Comp, Super Gas, and Street classes as well as IHRA Quick Rod, Super Rod, and Hot Rod categories
- Open plenum/single plane design
- Oval Port Dimensions: 1.87” High x 1.60” Wide
- Designed for today's larger cubic inch big block Chevy race engines
- No EGR provisions
- 4150 carburetor mounting flange
- 3000-7500 RPM power band
- Includes fuel rails and mounting brackets
- Height: Front 5.96", Rear 5.96"
| Basic Operating RPM Range | 3000-7500 RPM |
|---|---|
| Brand | Holley EFI |
| Carburetor Flange | Square/4150 |
| Carburetor Quantity | 1 |
| Carburetor Studs Included | No |
| Category | Engine |
| CNC Ported | No |
| Color | Natural |
| Construction | Cast |
| Cylinder Head Port Shape | Oval |
| Deck Height | 9.8 IN |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Flange Style | 4150 Square Bore |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | High Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Part Type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | EFI Intake Manifold |
| Removable Runners | No |
| Removable Top/Lid | No |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 3.6 IN |
| Throttle Body Gasket Included | No |
| Throttle Body Included | No |
| Vacuum Ports | Yes |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127716489 |
| Part Number | 300-561 |
